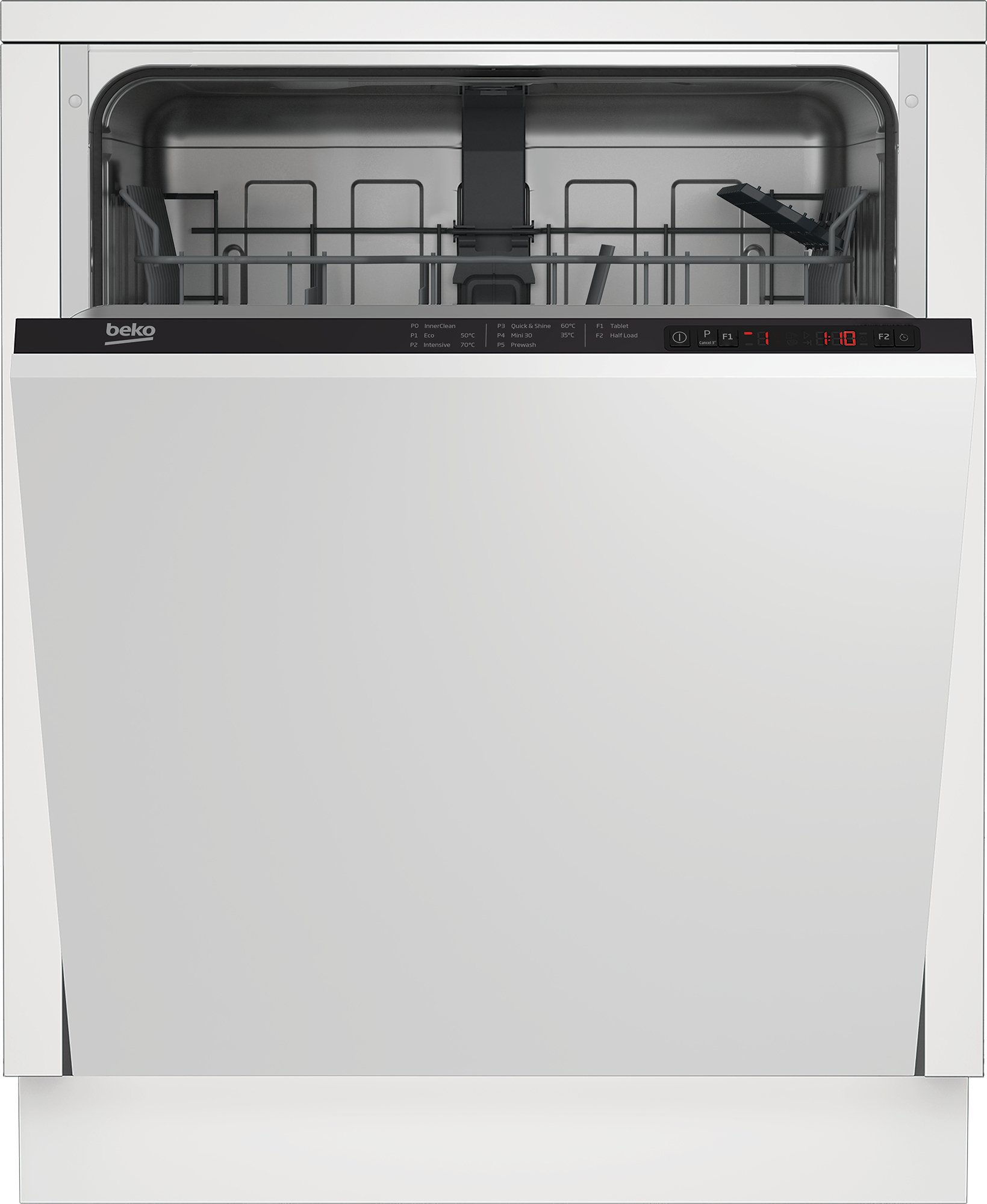

DIN15322 Integrated Full Size Dishwasher with Mini 30'
Model DIN15322EAN 8690842472398
101 specifications
- Energy classE
- Noise49 dB
- Weight35 kg
- Appliance placementFully built-in
- Number of place settings13 place settings
- Multitab optionYes
Overview
- Energy class
- E
- Noise
- 49 dB
- Weight
- 35 kg
- Appliance placement
- Fully built-in
- Number of place settings
- 13 place settings
- Multitab option
- Yes
- Brand
- Beko
- Category
- Dishwasher
- Model
- DIN15322
- Part number
- DIN15322
- EAN / UPC
- 8690842472398
- Also known as
- Beko DIN15322 Integrated Full Size Dishwasher with Mini 30'
Specifications
101 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Appliance placement | Fully built-in |
| Product size | Full size (60 cm) |
| Custom panel-ready | No |
| Door colour | Not applicable |
| Control type | Buttons |
| Built-in display | Yes |
| Display type | LCD |
| Built-in water softener | No |
| Adjustable water softener | No |
| Outlet hose length | 1.3 m |
| Hose diameter | 1.6 cm |
| Water fill | Cold |
| Upper basket adjustable height | No |
| Upper basket rack | Fixed |
| Maximum dish size (upper basket) | 23.7 cm |
| Lower basket rack | Foldable |
| Maximum dish size (lower basket) | 28.2 cm |

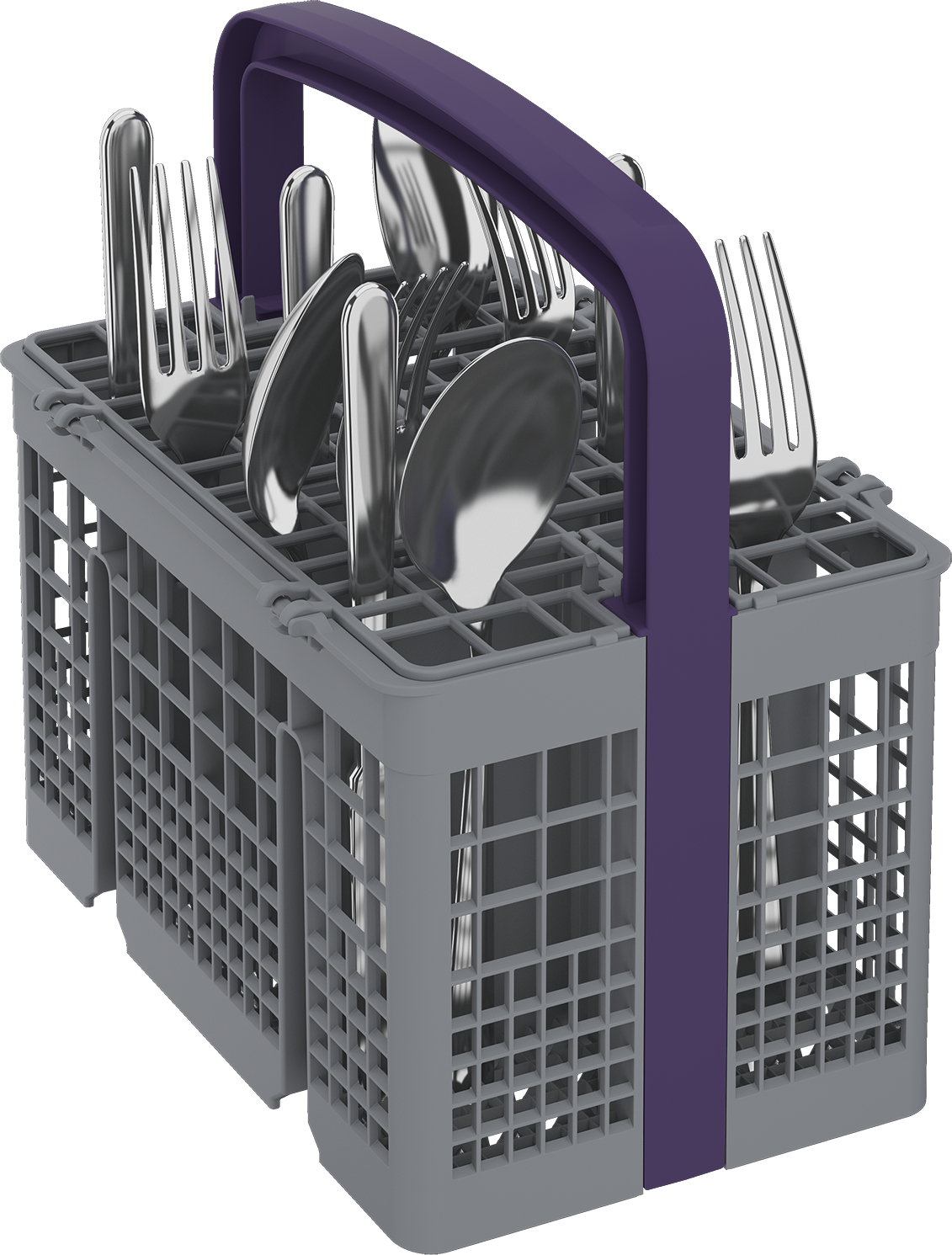

| Cutlery compartment type | Basket |
| Removable cutlery basket | Yes |
| Additional cutlery tray | No |
| Tub material | Stainless steel |
| Door hinge | Fixed |
| Self-balancing hinge | Yes |
| Door panel included | Yes |
| Adjustable upper basket cup racks | Yes |
| Lower basket folding tines | 4 |
| Upper basket handle | Yes |
Performance
| Specification | Value |
|---|---|
| Number of place settings | 13 place settings |
| Number of washing programs | 5 |
| Noise emission class | C |
| Noise level | 49 dB |
| Dishwashing programs | Eco, InnerClean, Intensive, Mini, Prewash, Quick&Shine |
| Drying system | Static |
| Drying performance | C |
| Number of temperature settings | 4 |
| Temperature (max) | 70 °C |
| Cycle time | 410 min |
| Cycle time (quick washing program) | 30 min |
| Delayed start timer | Yes |
| Countdown timer | Yes |
| Delay start (max) | 24 h |
| Overflow protection | Yes |
| Half-load | Yes |
| Self-cleaning | Yes |
| Maximum water flow pressure | 1000 kPa |
| Minimum water flow pressure | 300 kPa |
| Motor type | Brushed |
| Tablet detergent function | Yes |
| Eco program duration | 410 min |
Ergonomics
| Specification | Value |
|---|---|
| Multitab option | Yes |
| Adjustable rinse dosage | Yes |
| Child lock | No |
| Adjustable feet | Yes |
| Feet adjustment | 10 cm |
| Buzzer | Yes |
| Hose extender compatible | Yes |
| Remaining time indication | Yes |
| Rinse aid indicator | Yes |
| Salt indicator | Yes |
| Feet extension (min) | 0 mm |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | E |
| Energy efficiency scale | A to G |
| Energy efficiency class (legacy scale) | E |
| Energy consumption per cycle | 0.937 kWh |
| Water consumption per cycle | 12.9 L |
| Energy consumption per 100 cycles | 94 kWh |
| Connected load | 2100 W |
| Connected load (max) | 2100 W |
| Heater power | 1800 W |
| Drain pump power | 30 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 220-240 V |
| AC input frequency | 50 Hz |
| Current | 13 A |
| Energy efficiency index (EEI) | 55.9 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 598 mm |
| Depth | 550 mm |
| Height | 818 mm |
| Weight | 35 kg |
| Depth with door open | 115 cm |
| Height under worktop | 82 cm |
| Custom panel weight (min) | 3 kg |
| Custom panel weight (max) | 6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 644 mm |
| Package depth | 661 mm |
| Package height | 859 mm |
| Package weight | 36.7 kg |
Technical details
| Specification | Value |
|---|---|
| Furniture door required | Yes |
| Furniture door weight range | 3 - 6 kg |
Other features
| Specification | Value |
|---|---|
| Professional installation required | Yes |
| Required tools | Standard tool box |
| Spare part retention | 7 year(s) |
| Washing class | A |
Logistics data
| Specification | Value |
|---|---|
| Commodity code | 84221100 |
| Expanded Polystyrene (EPS) packaging weight | 660 g |
| Metal packaging weight | 12 g |
| Paper packaging weight | 700 g |
| Plastic packaging weight | 205 g |
| Wood packaging weight | 450 g |
| Commodity Classification Automated Tracking System (CCATS) | 84221100 |
| Harmonized System (HS) code | 84221100 |
