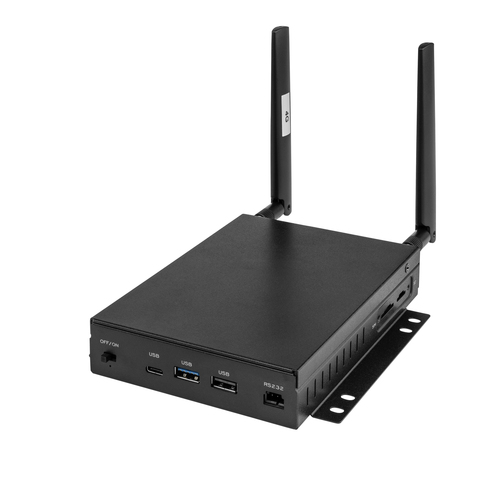

ABPC-545P
Model ABPC-545PPart no. 99108620.461
48 specifications
- ProcessorRockchip RK3399
- Memory2048 MB
- Storage16 GB
- OSAndroid
- Weight470 g
- ColourBlack
Overview
- Processor
- Rockchip RK3399
- Memory
- 2048 MB
- Storage
- 16 GB
- OS
- Android
- Weight
- 470 g
- Colour
- Black
- Brand
- ProDVX
- Category
- Digital Media Player
- Model
- ABPC-545P
- Part number
- 99108620.461
- Also known as
- ProDVX ABPC-545P
Specifications
48 specifications in 16 groups
Features
| Specification | Value |
|---|---|
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Rockchip RK3399 |
| Processor architecture | Cortex-A53 |
| Processor cores | 4 |
Storage
| Specification | Value |
|---|---|
| Built-in storage media | Yes |
| Storage media type | Flash |
| Total storage capacity | 16 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2048 MB |
| Internal memory type | DDR3 |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
Graphics
| Specification | Value |
|---|---|
| Graphics card | Mali-T860 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio (L/R) out | 0 |
| DC-in jack | Yes |
| Number of HDMI outputs | 1 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Networking standards | IEEE 802.3at |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Operating system version | 9 |
Ergonomics
| Specification | Value |
|---|---|
| On Screen Display (OSD) languages | Multi |
| VESA mounting | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 15 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 31 mm |
| Height | 130 mm |
| Weight | 470 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
Other features
| Specification | Value |
|---|---|
| Battery type | Lithium‐metal non‐rechargeable coin |
| Internal memory | 2 GB |
| Mean time between failures (MTBF) | 45000 h |
| RS-232 ports | 1 |
