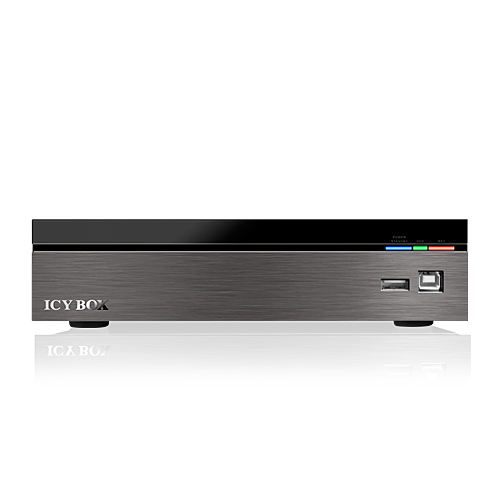

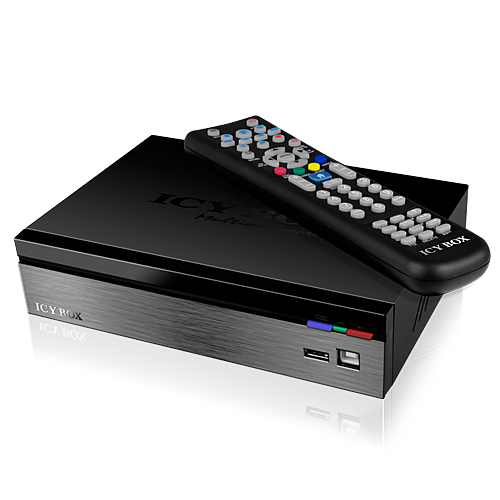

IB-MP3012DVB-T Black 2.0 channels
Model IB-MP3012DVB-TPart no. 25313EAN 4250078184249
76 specifications
- ConnectivityWired
- ColourBlack
- Processor frequency400 MHz
- Built-in storage mediaYes
- Analog signal format systemNTSC, PAL
- Audio output channels2.0 channels
Overview
- Connectivity
- Wired
- Colour
- Black
- Processor frequency
- 400 MHz
- Built-in storage media
- Yes
- Analog signal format system
- NTSC, PAL
- Audio output channels
- 2.0 channels
- Brand
- ICY BOX
- Category
- Digital Media Player
- Model
- IB-MP3012DVB-T
- Part number
- 25313
- EAN / UPC
- 4250078184249
- Also known as
- ICY BOX IB-MP3012DVB-T Black 2.0 channels
Specifications
76 specifications in 17 groups
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Video formats supported | ASF, AVI, MKV, MOV, MPEG, MPEG4, MPG, RM, RMVB, VOB, WMV |
| Image formats supported | BMP, GIF, JPEG XR, JPG, PNG, TIF |
| Video compression formats | MPEG, MPEG4 |
| Subtitle formats supported | ass, smi, srt, ssa, sub, sub+idx |
| Audio formats supported | AAC, ASF, M4A, MP3, OGG, WAV, WMA |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 400 MHz |
Storage
| Specification | Value |
|---|---|
| Built-in storage media | Yes |
| Maximum storage capacity | 2 TB |
| HDD interface | Serial ATA |
| HDD size | 3.5" |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL |
| Video recording speed modes | EP, HQ, LP, SLP, SP |
Audio
| Specification | Value |
|---|---|
| Audio output channels | 2.0 channels |
| Audio decoders | Dolby Digital, DTS |
| Operating acoustic emission | 0 dB |
| Standby acoustic emission | 0 dB |

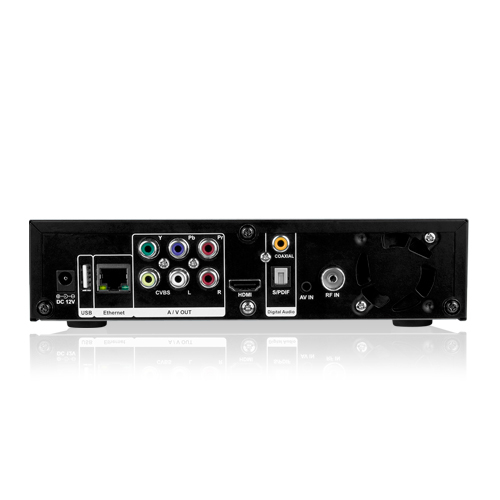

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.3a |
| HDCP | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| Audio (L/R) out | 1 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video in | 1 |
| Composite video out | 1 |
| S-Video outputs quantity | 0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Digital audio optical out | 1 |
| Digital audio coaxial out | 1 |
| Microphone in | No |
| AV output | Yes |
| DC-in jack | No |
| S/PDIF out port | Yes |
| SCART ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Networking features | iEEE802.11n |
| Universal Plug and Play (UPnP) | Yes |
Ergonomics
| Specification | Value |
|---|---|
| On Screen Display (OSD) languages | Traditional Chinese, German, Dutch, English, Spanish, Greek, Italian, Portuguese, Turkish |
| Plug and Play | Yes |
| On/off switch | Yes |
Power
| Specification | Value |
|---|---|
| Power requirements | AC 100-240 V, 50-60 Hz, 0.7 A, DC 12 V, 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Package length | 18 cm |
| Packaging tare weight | 1.607 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 250 mm |
| Package height | 107 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AUX, AV |
| Quick start guide | Yes |
| Manual | Yes |
| AC adapter included | No |
System requirements
| Specification | Value |
|---|---|
| Internet connection required | Yes |
| Optical drive required | No |
Loudspeakers
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Speakers | 0 |
TV tuner
| Specification | Value |
|---|---|
| TV tuner integrated | Yes |
| TV tuner type | DVB-T |
Other features
| Specification | Value |
|---|---|
| Built-in camera | No |
| Battery type | AA |
| Antenna | Yes |
| Audio/video cable | 2 |
| Data transfer rate | 100 Mbit/s |
| Link/Act LED | No |
| RS-232 ports | 0 |
| Remote control type | IR |
| Supported data transfer rates | 10,100 Mbit/s |
| Supported network protocols | SAMBA, UPnP |
| Wall mountable | No |
| Connectivity technology | Wired |
| DC-in requirements | 12 VDC |
| Quantity outer carton | 10 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 560 mm |
| Master (outer) case length | 525 mm |
| Master (outer) case height | 205 mm |
