ABPC-4320 Box PC (R24-4321)
Model ABPC-4320 Box PC (R24-4321)Part no. 7099400
48 specifications
- ProcessorRockchip RK3576
- Memory4 GB
- Storage16 GB
- OSAndroid
- Weight470 g
- ColourBlue
Overview
- Processor
- Rockchip RK3576
- Memory
- 4 GB
- Storage
- 16 GB
- OS
- Android
- Weight
- 470 g
- Colour
- Blue
- Brand
- ProDVX
- Category
- Digital Media Player
- Model
- ABPC-4320 Box PC (R24-4321)
- Part number
- 7099400
- Also known as
- ProDVX ABPC-4320 (R26-4321)
Specifications
48 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| Product colour | Blue |
| Video formats supported | 3GP, ASF, AVI, DAT, FLV, MKV, MOV, MP4, MPG, RM, TS, VOB, WMV |
| Image formats supported | BMP, GIF, JPEG, JPG, PNG |
| Audio formats supported | AAC, ASF, MP2, OGG, WAV, WMA |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Rockchip |
| Processor model | Rockchip RK3576 |
| Processor architecture | Cortex-A72 |
Storage
| Specification | Value |
|---|---|
| Built-in storage media | Yes |
| Storage media type | eMMC |
| Total storage capacity | 16 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| Graphics card | Mali-G52 MC3 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| HDMI output | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio (L/R) out | 1 |
| GPIO (8-bit) ports quantity | 1 |
| Number of HDMI outputs | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,100,10 Mbit/s |
| Networking standards | IEEE 802.3at |
Software
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Operating system version | 15 |
Ergonomics
| Specification | Value |
|---|---|
| On Screen Display (OSD) languages | Multi |
| VESA mounting | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 15 W |

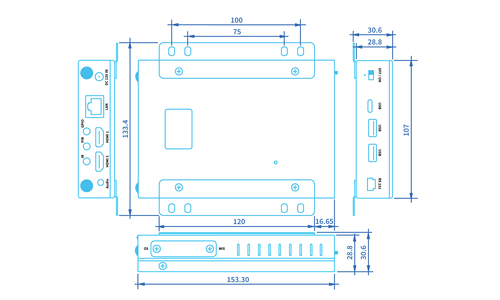

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 153.3 mm |
| Depth | 30.6 mm |
| Height | 107 mm |
| Weight | 470 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA |
Other features
| Specification | Value |
|---|---|
| Battery type | CR1220 - Lithium‐metal non‐rechargeable coin |
| Audio output | 3.5 mm |
| Internal memory | 4 GB |
| Mean time between failures (MTBF) | 45000 h |
| RS-232 ports | 1 |
