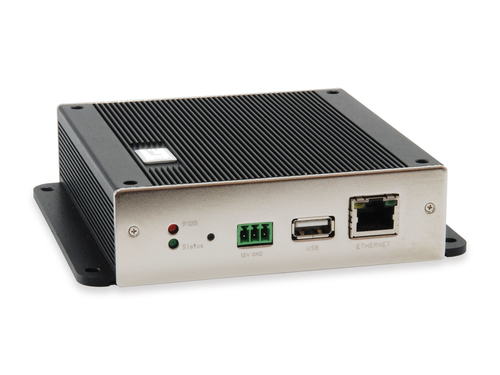

Digital Signage Station
Model DSS-1000EAN 4015867202005
45 specifications
- Storage0 GB
- Weight566 g
- ColourBlack, Silver
- Built-in displayNo
- HD typeFull HD
- HDMI ports quantity1
Overview
- Storage
- 0 GB
- Weight
- 566 g
- Colour
- Black, Silver
- Built-in display
- No
- HD type
- Full HD
- HDMI ports quantity
- 1
- Brand
- LevelOne
- Category
- Digital Media Player
- Model
- DSS-1000
- Part number
- DSS-1000
- EAN / UPC
- 4015867202005, 4015867236314
- Also known as
- LevelOne Digital Signage Station
Specifications
45 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Video formats supported | AVI |
| Image formats supported | JPG |
| Video compression formats | H.264 |
| Certification | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B) |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Storage
| Specification | Value |
|---|---|
| Built-in storage media | No |
| Total storage capacity | 0 GB |
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Full HD | Yes |
| Maximum video resolution | 1920 x 1080 pixels |
| Frame rate | 30 fps |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) out | 0 |
| Component video (YPbPr/YCbCr) out | 0 |
| Composite video out | 1 |
| Digital audio optical out | 0 |
| Digital audio coaxial out | 0 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
| Universal Plug and Play (UPnP) | Yes |
Ergonomics
| Specification | Value |
|---|---|
| LED indicators | Power, Ready |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 114 mm |
| Depth | 33 mm |
| Height | 135 mm |
| Weight | 566 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 285 mm |
| Package height | 100 mm |
| Package weight | 1.24 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| User Guide on CD-ROM | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Other features
| Specification | Value |
|---|---|
| Supported network protocols | TCP, UDP, IP, HTTP, RTP, RTSP, ICMP, ARP, UPnP |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case gross weight | 11.9 kg |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 566 mm |
| Master (outer) case height | 205 mm |
