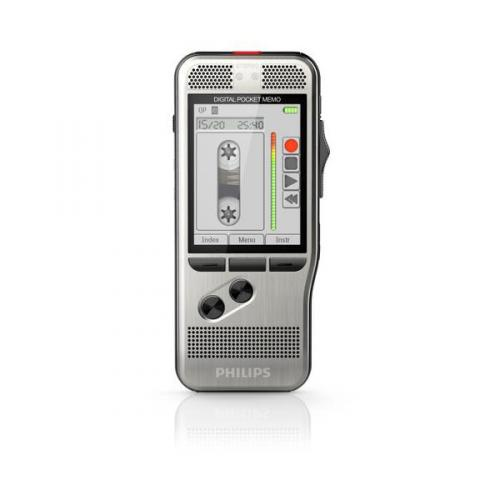

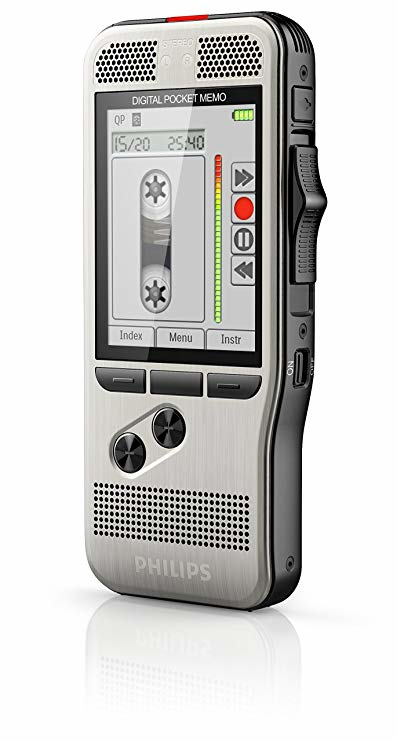

Pocket Memo DPM7820
Model Pocket Memo DPM7820Part no. DPM7820/00
48 specifications
- Display6.1 cm (2.4")
- Resolution320 x 240 pixels
- Memory4096 MB
- Battery1000 mAh
- ConnectivityUSB
- Weight117 g
Overview
- Display
- 6.1 cm (2.4")
- Resolution
- 320 x 240 pixels
- Memory
- 4096 MB
- Battery
- 1000 mAh
- Connectivity
- USB
- Weight
- 117 g
- Brand
- Philips
- Category
- Dictaphone
- Model
- Pocket Memo DPM7820
- Part number
- DPM7820/00
- Also known as
- Philips Pocket Memo DPM7820 Flash card Silver
Specifications
48 specifications in 14 groups
Audio
| Specification | Value |
|---|---|
| Maximum recording time | 700 h |
| Recording modes | Quality Play (QP), Standard Play (SP) |
| Built-in microphone | Yes |
| Audio formats supported | DSS, MP3, PCM |
| Frequency range | 300 - 7500 Hz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4096 MB |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | TFT |
| Display resolution | 320 x 240 pixels |
| Display diagonal | 6.1 cm (2.4") |
Loudspeakers
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Output power | 200 mW |
| Loudspeaker diameter | 2.8 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB |
| USB connector type | Micro-USB |
| Headphone out | Yes |
| Microphone in | Yes |
Radio
| Specification | Value |
|---|---|
| FM radio | No |
Storage
| Specification | Value |
|---|---|
| Media types supported | Flash card |
| Compatible memory cards | SD, SDHC |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 1000 mAh |
| Recording battery life | 30 h |
Technical details
| Specification | Value |
|---|---|
| Product colour | Silver |
| Battery recharge time | 3 h |
| Compliance certificates | RoHS |
| Connection to PC | Yes |
| Memory card included | SD |
| Microphone direction type | Omnidirectional |
| Rechargeable | Yes |
| Sample rate | 44.1 kHz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 53 mm |
| Depth | 15 mm |
| Height | 123 mm |
| Weight | 117 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7, Windows 8 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.9 Mavericks |
| Bundled software | SpeechExec Pro |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
| Cables included | USB |
| Pouch | Yes |
| Quick start guide | Yes |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 1024 MB |
| Minimum processor | Intel Pentium 4 1.0 GHz |
| USB required | Yes |
