DPM7700 Flash card Stainless steel
Model DPM7700Part no. DPM7700/00EAN 4055325694218
58 specifications
- Display6.1 cm (2.4")
- Resolution320 x 240 pixels
- Battery1000 mAh
- ConnectivityUSB
- Weight117 g
- ColourStainless steel
Overview
- Display
- 6.1 cm (2.4")
- Resolution
- 320 x 240 pixels
- Battery
- 1000 mAh
- Connectivity
- USB
- Weight
- 117 g
- Colour
- Stainless steel
- Brand
- Philips
- Category
- Dictaphone
- Model
- DPM7700
- Part number
- DPM7700/00
- EAN / UPC
- 4055325694218, 9120056501502, 9120056503216
- Also known as
- Philips DPM7700 Flash card Stainless steel
Specifications
58 specifications in 12 groups
Audio
| Specification | Value |
|---|---|
| Maximum recording time | 700 h |
| Recording modes | Pulse-code modulation (PCM), Quality Play (QP), Standard Play (SP) |
| Audio formats supported | DSS, MP3 |
| Playback time | 27 h |
| Frequency range | 300 - 7500 Hz |
| SP mode recording time | 700 h |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | TFT |
| Display resolution | 320 x 240 pixels |
| Display diagonal | 6.1 cm (2.4") |
Loudspeakers
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| Output power | 200 mW |
| Loudspeaker diameter | 2.8 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB |
| USB connector type | Micro-USB |
| Headphone out | Yes |
| Microphone in | Yes |
Storage
| Specification | Value |
|---|---|
| Media types supported | Flash card |
| Compatible memory cards | SD, SDHC |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 1000 mAh |
| Battery life (max) | 4800 h |
| Rechargeable battery | Yes |
| Recording battery life | 27 h |
Technical details
| Specification | Value |
|---|---|
| Product colour | Stainless steel |
| Audio recording formats | DSS, MP3 |
| Cable length | 3 m |
| Card reader integrated | Yes |
| Compliance certificates | RoHS |
| Connection to PC | Yes |
| Docking connector | Yes |
| Driver type | Dynamic |
| Headphone connectivity | 3.5 mm |
| Headphone sensitivity | 103 dB |
| MP3 playback | Yes |
| Magnet type | Neodymium |
| Memory card included | SDHC |
| Rechargeable | Yes |
| USB cable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 53 mm |
| Depth | 123 mm |
| Height | 15 mm |
| Weight | 117 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Win |
| Mac operating systems supported | Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Bundled software | SpeechExec Transcribe, SpeechExec Dictate |

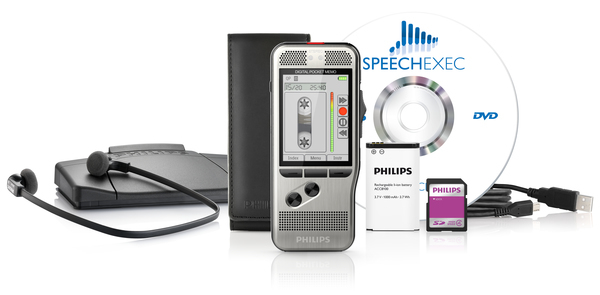

Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
| Cables included | USB |
| Headphones included | Yes |
| Pouch | Yes |
| Quick start guide | Yes |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 1024 MB |
| Minimum processor | Intel Pentium 4, 1.0 GHz |
| Minimum storage drive space | 950 MB |
| USB required | Yes |
