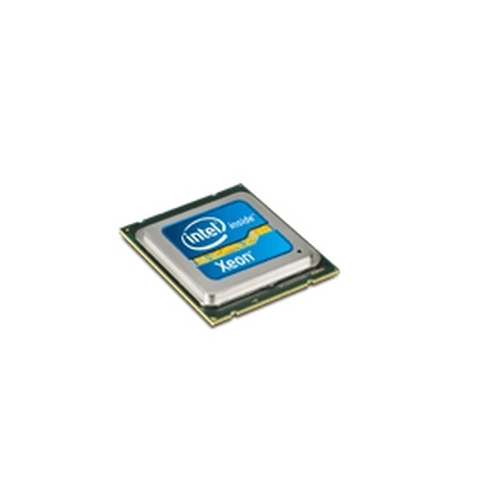

NEC Xeon E5-2420 v2
Model Xeon E5-2420 v2Part no. N8101-732F
48 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E5 V2 Family
- Maximum internal memory supported by processor384 GB
- Execute Disable BitYes
- Tcase76 °C
Overview
- Processor
- Intel® Xeon® E5 V2 Family
- Maximum internal memory supported by processor
- 384 GB
- Execute Disable Bit
- Yes
- Tcase
- 76 °C
- Brand
- NEC
- Category
- CPU
- Model
- Xeon E5-2420 v2
- Part number
- N8101-732F
- Also known as
- NEC Xeon E5-2420 v2 processor 2.2 GHz 15 MB L3
Specifications
48 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 V2 Family |
| Processor model | E5-2420V2 |
| Processor base frequency | 2.2 GHz |
| Processor cores | 6 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor threads | 12 |
| System bus rate | 7.2 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.7 GHz |
| Processor cache | 15 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.65 - 1.30 V |
| Stepping | S1 |
| Number of QPI links | 1 |
| Memory bandwidth supported by processor (max) | 38.4 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 384 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| Embedded options available | No |
| Scalability | 2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Demand Based Switching | Yes |
| Intel TSX-NI | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 76 °C |
Packaging data
| Specification | Value |
|---|---|
| Package width | 45 mm |
| Package depth | 42.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
