NEC Intel Xeon E5-2650
Model Intel Xeon E5-2650Part no. N8101-549F
43 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E5 Family
- Maximum internal memory supported by processor750 GB
- Execute Disable BitYes
- Tcase77.4 °C
- Processor package size52.5 mm
Overview
- Processor
- Intel® Xeon® E5 Family
- Maximum internal memory supported by processor
- 750 GB
- Execute Disable Bit
- Yes
- Tcase
- 77.4 °C
- Processor package size
- 52.5 mm
- Brand
- NEC
- Category
- CPU
- Model
- Intel Xeon E5-2650
- Part numbers
- N8101-549F, CPU-2650-E5-01
- Also known as
- NEC Intel Xeon E5-2650 processor 2 GHz
Specifications
43 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2650 |
| Processor base frequency | 2 GHz |
| Processor cores | 8 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 32 nm |
| Component for | Server/workstation |
| Processor threads | 16 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.8 GHz |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.6 - 1.35 V |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 750 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| CPU configuration (max) | 2 |
| Scalability | S2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 77.4 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 52.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
What people say
Reviews & ratings
NEC Intel Xeon E5-2650
No reviews yet
Be the first to tell others how NEC Intel Xeon E5-2650 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NEC Intel Xeon E5-2650
All cpu comparisons- NEC Intel Xeon E5-2650 vsNEC Intel Xeon E5-2407Compare specs
- NEC Intel Xeon E5-2650 vsNEC Intel Xeon E5-2403Compare specs
- NEC Intel Xeon E5-2650 vsNEC Intel Xeon E5-2690Compare specs
- NEC Intel Xeon E5-2650 vsNEC Intel Xeon E5-2640Compare specs
- NEC Intel Xeon E5-2650 vsHP AMD Opteron 8358 SECompare specs
- NEC Intel Xeon E5-2650 vsHP AMD Opteron 8425 HECompare specs
- NEC Intel Xeon E5-2650 vsAcer Intel Core i3-2120Compare specs
- NEC Intel Xeon E5-2650 vsFujitsu Intel Core i5-3320MCompare specs
Similar products
All cpus
Fujitsu

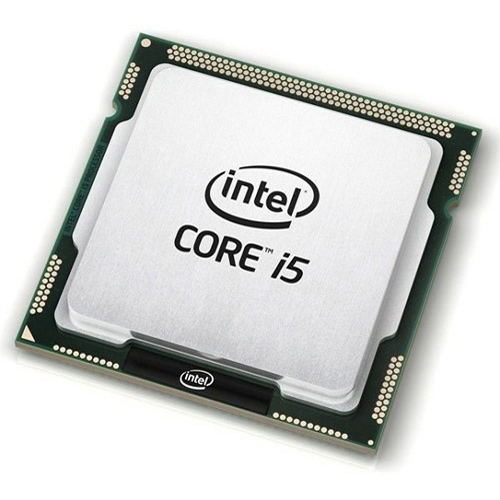

Core i5-7200U processor
