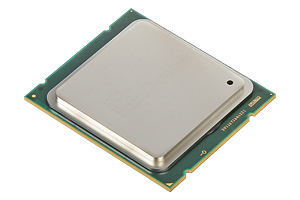

NEC Intel Xeon E5-2609 v2
Model Intel Xeon E5-2609 v2Part no. N8101-675F
53 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E5 V2 Family
- Maximum internal memory supported by processor768 GB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase71 °C
Overview
- Processor
- Intel® Xeon® E5 V2 Family
- Maximum internal memory supported by processor
- 768 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 71 °C
- Brand
- NEC
- Category
- CPU
- Model
- Intel Xeon E5-2609 v2
- Part number
- N8101-675F
- Also known as
- NEC Intel Xeon E5-2609 v2 processor 2.5 GHz 10 MB L3
Specifications
53 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 V2 Family |
| Processor model | E5-2609V2 |
| Processor base frequency | 2.5 GHz |
| Processor cores | 4 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor threads | 4 |
| System bus rate | 6.4 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 10 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.65 - 1.30 V |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Processor codename | Ivy Bridge |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4, 1x8, 1x16 |
| Supported instruction sets | AVX |
| CPU configuration (max) | 2 |
| Embedded options available | Yes |
| Scalability | 2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Demand Based Switching | Yes |
| Intel TSX-NI | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 71 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
