NEC Intel Xeon E5-2403
Model Intel Xeon E5-2403Part no. N8101-560F
44 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E5 Family
- Maximum internal memory supported by processor375 GB
- On-board graphics card modelNot available
- Execute Disable BitYes
- Processor package size45 mm
Overview
- Processor
- Intel® Xeon® E5 Family
- Maximum internal memory supported by processor
- 375 GB
- On-board graphics card model
- Not available
- Execute Disable Bit
- Yes
- Processor package size
- 45 mm
- Brand
- NEC
- Category
- CPU
- Model
- Intel Xeon E5-2403
- Part numbers
- N8101-560F, N8101-569F
- Also known as
- NEC Intel Xeon E5-2403 processor 1.8 GHz 10 MB L3
Specifications
44 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2403 |
| Processor base frequency | 1.8 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor lithography | 32 nm |
| Component for | Server/workstation |
| Processor threads | 4 |
| System bus rate | 6.4 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 10 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.6 - 1.35 V |
| Stepping | M1 |
| Bus type | QPI |
| Number of QPI links | 1 |
| Memory bandwidth supported by processor (max) | 25 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 375 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| CPU configuration (max) | 2 |
| Scalability | S2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Smart Cache | Yes |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 45 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
What people say
Reviews & ratings
NEC Intel Xeon E5-2403
No reviews yet
Be the first to tell others how NEC Intel Xeon E5-2403 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare NEC Intel Xeon E5-2403
All cpu comparisons- NEC Intel Xeon E5-2403 vsNEC Intel Xeon E5-2430LCompare specs
- NEC Intel Xeon E5-2403 vsNEC Intel Xeon E5-2450Compare specs
- NEC Intel Xeon E5-2403 vsNEC Intel Xeon E5-2407Compare specs
- NEC Intel Xeon E5-2403 vsNEC Intel Xeon E5-2650Compare specs
- NEC Intel Xeon E5-2403 vsLenovo Xeon E5-2440 6C 2.4GHz 15MB Cache 1333MHz 95WCompare specs
- NEC Intel Xeon E5-2403 vsLenovo Xeon E5-2403 4C 1.8GHz 10MB Cache 1066MHz 80WCompare specs
- NEC Intel Xeon E5-2403 vsHP B0T28AV processorCompare specs
- NEC Intel Xeon E5-2403 vsHP B0W04AV processorCompare specs
Similar products
All cpus
Fujitsu
Core i5-7200U processor
Model i5-7200U
- Processor
- Intel® Core™ i5
- Graphics
- Not available
- Type
- System on Chip
Fujitsu

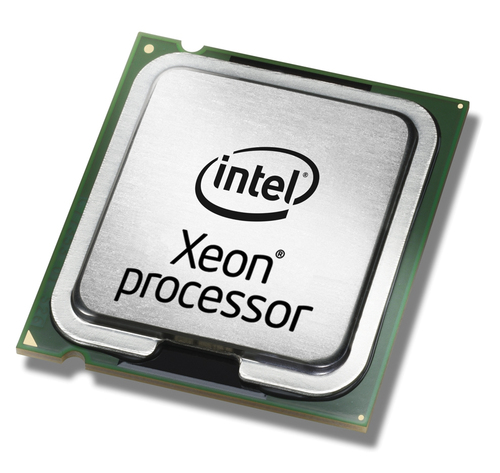

Intel Xeon Processor E3-1246 v3
