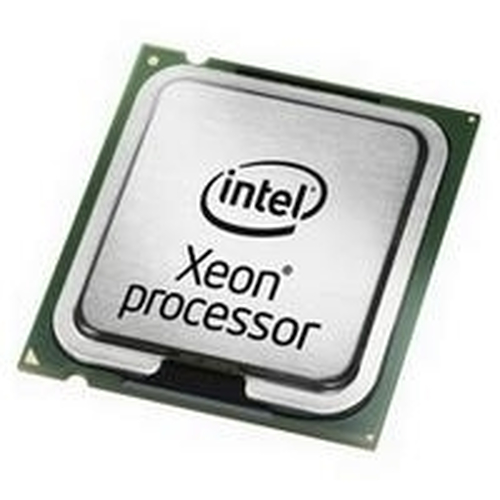

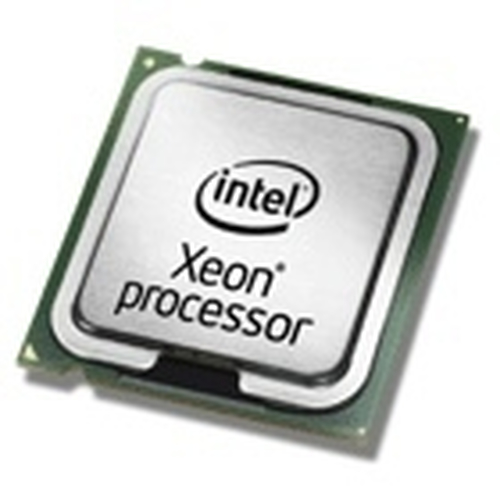

Lenovo Xeon E5520
Model Xeon E5520Part no. 43R2038EAN 884343815589
14 specifications Checked 7 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Market segmentServer
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Market segment
- Server
- Brand
- Lenovo
- Category
- CPU
- Model
- Xeon E5520
- Part numbers
- 43R2038, 59Y3961
- EAN / UPC
- 884343815589
- Also known as
- Lenovo Xeon E5520 processor 2.26 GHz 8 MB L3 Tray
Specifications
14 specifications in 2 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5520 |
| Processor base frequency | 2.26 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 45 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor operating modes | 64-bit |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| Processor front side bus | 1066 MHz |
| Thermal Design Power (TDP) | 80 W |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
