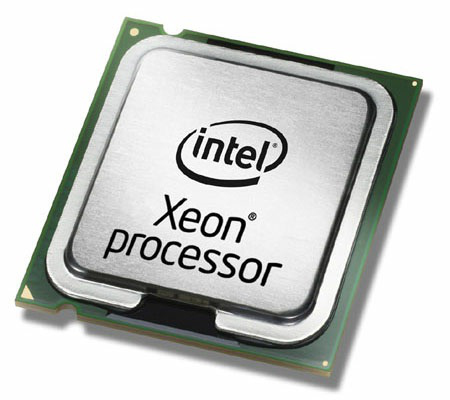

Lenovo Xeon E5-2403
Model Xeon E5-2403Part no. 90Y6367EAN 883436128018
40 specifications Checked 3 days ago
- ProcessorIntel® Xeon® E5 Family
- Maximum internal memory supported by processor375 GB
- Execute Disable BitYes
Overview
- Processor
- Intel® Xeon® E5 Family
- Maximum internal memory supported by processor
- 375 GB
- Execute Disable Bit
- Yes
- Brand
- Lenovo
- Category
- CPU
- Model
- Xeon E5-2403
- Part numbers
- 90Y6367, 0A89458, 90Y5292, 94Y6380
- EAN / UPC
- 883436128018, 4053162263963, 886843675564
- Also known as
- Lenovo Xeon E5-2403 processor 1.8 GHz 10 MB L3 Tray
Specifications
40 specifications in 5 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2403 |
| Processor base frequency | 1.8 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 4 |
| System bus rate | 6.40 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 10 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.6 - 1.35 V |
| Stepping | M1 |
| Bus type | QPI |
| Number of QPI links | 1 |
| Memory bandwidth supported by processor (max) | 25 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 375 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| PCI Express slots version | 3.0 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
