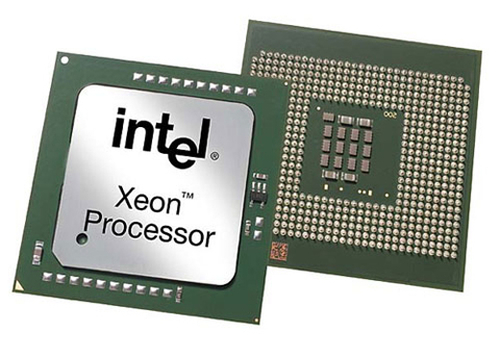

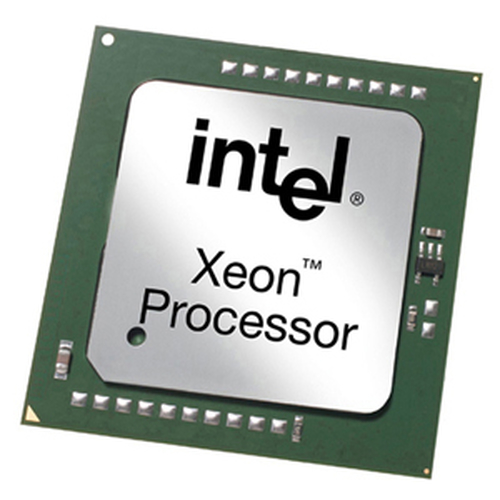

Lenovo Intel Xeon L5640
Model Intel Xeon L5640Part no. 69Y1227EAN 849064071829
22 specifications Checked 4 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Market segmentServer
- Intel Virtualization Technology (VT-x)Yes
- Maximum operating temperature70 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Market segment
- Server
- Intel Virtualization Technology (VT-x)
- Yes
- Maximum operating temperature
- 70 °C
- Brand
- Lenovo
- Category
- CPU
- Model
- Intel Xeon L5640
- Part numbers
- 69Y1227, 69Y5000
- EAN / UPC
- 849064071829, 4054317784814
- Also known as
- Lenovo Intel Xeon L5640 processor 2.26 GHz 12 MB L3 Tray
Specifications
22 specifications in 5 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | L5640 |
| Processor base frequency | 2.26 GHz |
| Processor cores | 6 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 12 |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 60 W |
| VID Voltage Range | 0.750 - 1.350 V |
| CPU multiplier (bus/core ratio) | 17 |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
| Bandwidth | 32768 MB/s |
Processor special features
| Specification | Value |
|---|---|
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 70 °C |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 42.5 x 0 x 45 mm |
