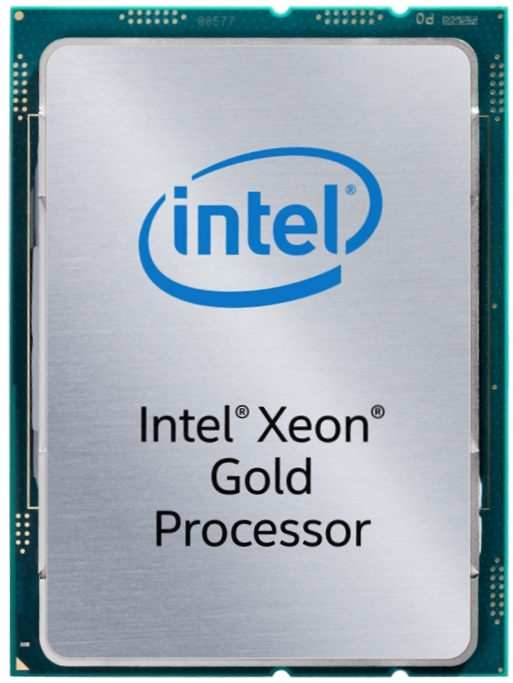

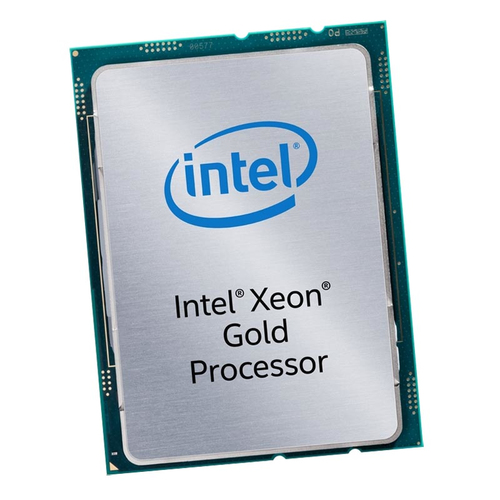

Lenovo Intel Xeon Gold 6146
Model Intel Xeon Gold 6146Part no. 4XG7A11377EAN 889488458417
52 specifications Checked 2 days ago
- ProcessorIntel® Xeon® Gold
- Maximum internal memory supported by processor768 GB
- Execute Disable BitYes
- Tcase76 °C
- Launch dateQ3'17
- Processor package size76 x 56.5 mm
Overview
- Processor
- Intel® Xeon® Gold
- Maximum internal memory supported by processor
- 768 GB
- Execute Disable Bit
- Yes
- Tcase
- 76 °C
- Launch date
- Q3'17
- Processor package size
- 76 x 56.5 mm
- Brand
- Lenovo
- Category
- CPU
- Model
- Intel Xeon Gold 6146
- Part numbers
- 4XG7A11377, 4XG7A11384, 4XG7A37096, 4XG7A37092, 7XG7A05554B, 7XG7A05599B +3 more
- EAN / UPC
- 889488458417, 889488458318, 8894884583184
- Also known as
- Lenovo Intel Xeon Gold 6146 processor 3.2 GHz 24.75 MB L3
Specifications
52 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® Gold |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 6146 |
| Processor base frequency | 3.2 GHz |
| Processor cores | 12 |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Component for | Server/workstation |
| Processor series | Intel Xeon Gold 6000 Series |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 4.2 GHz |
| Processor cache | 24.75 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 165 W |
| Stepping | H0 |
| Bus type | UPI |
| Processor codename | Skylake |
| Processor code | SR3MA |
| Processor ARK ID | 124942 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Embedded options available | No |
| Scalability | S4S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 76 °C |
Technical details
| Specification | Value |
|---|---|
| Launch date | Q3'17 |
| Status | Launched |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 76 x 56.5 mm |
Other features
| Specification | Value |
|---|---|
| Compatibility | Server System R2208WF0ZS Server System R2208WFTZS Server System R2308WFTZS Server Board S2600BPB Server Board S2600BPQ Server Board S2600BPS Server Board S2600STB Server Board S2600WF0 Compute Module HNS2600BPB Compute Module HNS2600BPQ Compute Module HNS2600BPS |
