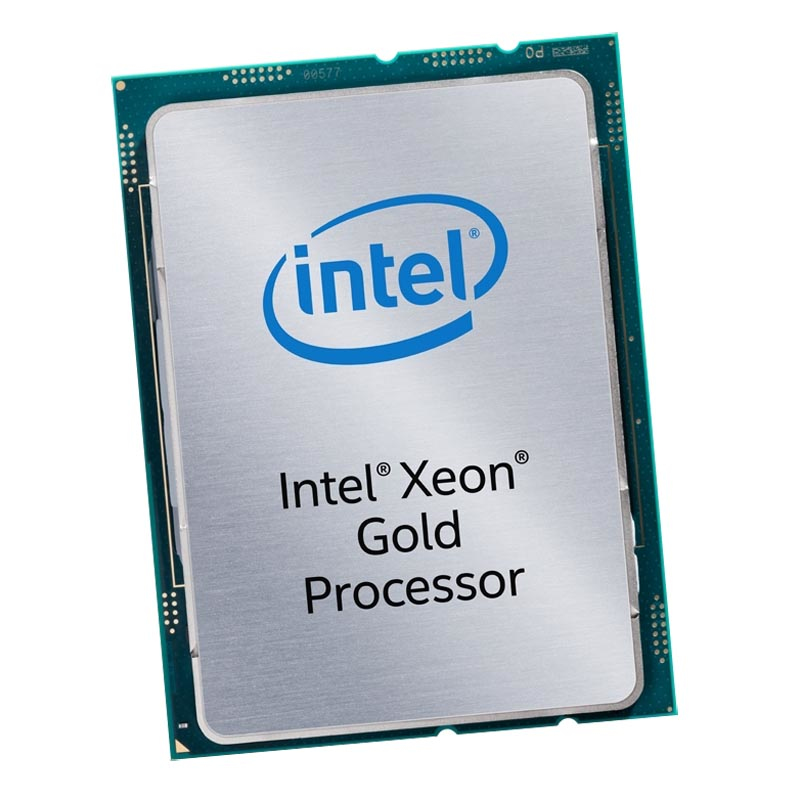

Lenovo Intel Xeon Gold 6140M
Model Intel Xeon Gold 6140MPart no. 4XG7A09400EAN 889488461806
40 specifications Checked 2 days ago
- ProcessorIntel® Xeon® Gold
- Maximum internal memory supported by processor1.5 TB
- On-board graphics cardNo
- Market segmentServer
- Intel Trusted Execution TechnologyYes
- Tcase91 °C
Overview
- Processor
- Intel® Xeon® Gold
- Maximum internal memory supported by processor
- 1.5 TB
- On-board graphics card
- No
- Market segment
- Server
- Intel Trusted Execution Technology
- Yes
- Tcase
- 91 °C
- Brand
- Lenovo
- Category
- CPU
- Model
- Intel Xeon Gold 6140M
- Part numbers
- 4XG7A09400, 4XG7A09149, 7XG7A04646, 7XG7A04967, 7XG7A05557, 7XG7A05602 +2 more
- EAN / UPC
- 889488461806, 889488461035, 889488435708, 889488436095 +4 more
- Also known as
- Lenovo Intel Xeon Gold 6140M processor 2.3 GHz 24.75 MB L3
Specifications
40 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® Gold |
| Processor model | 6140M |
| Processor base frequency | 2.3 GHz |
| Processor cores | 18 |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Cooler included | Yes |
| Component for | Server/workstation |
| Processor threads | 36 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.7 GHz |
| Processor cache | 24.75 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 140 W |
| Stepping | H0 |
| Processor codename | Skylake |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1.5 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Embedded options available | No |
| Scalability | S4S |
Processor special features
| Specification | Value |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 91 °C |
