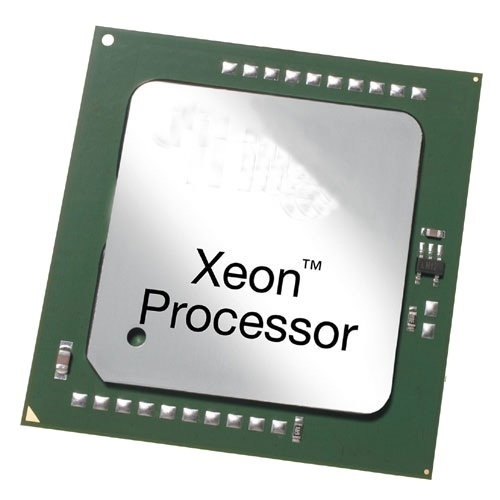

Lenovo Intel Xeon E7-4809 v3
Model Intel Xeon E7-4809 v3Part no. 00ML902EAN 883436676878
45 specifications Checked 3 days ago
- ProcessorIntel® Xeon® E7 v3
- Maximum internal memory supported by processor1.53 TB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase70 °C
Overview
- Processor
- Intel® Xeon® E7 v3
- Maximum internal memory supported by processor
- 1.53 TB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 70 °C
- Brand
- Lenovo
- Category
- CPU
- Model
- Intel Xeon E7-4809 v3
- Part numbers
- 00ML902, 00ML950
- EAN / UPC
- 883436676878, 883436676984
- Also known as
- Lenovo Intel Xeon E7-4809 v3 processor 2 GHz 20 MB L3
Specifications
45 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E7 v3 |
| Processor model | E7-4809V3 |
| Processor base frequency | 2 GHz |
| Processor cores | 8 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor threads | 16 |
| System bus rate | 6.4 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 20 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 115 W |
| Bus type | QPI |
| Number of QPI links | 3 |
| Memory bandwidth supported by processor (max) | 102 GB/s |
| Processor codename | Haswell |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR3-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1066,1333,1600,1866 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 32 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| CPU configuration (max) | 4 |
| Embedded options available | No |
| Scalability | S4S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Instruction Replay Technology | No |
| Intel TSX-NI | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 70 °C |
