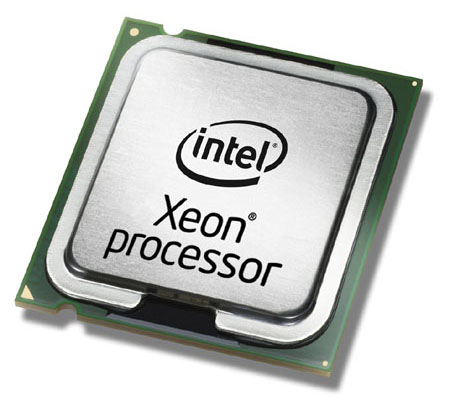

Lenovo Intel Xeon E5507
Model Intel Xeon E5507Part no. 69Y1356
18 specifications Checked 4 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Market segmentServer
- Maximum operating temperature76 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Market segment
- Server
- Maximum operating temperature
- 76 °C
- Brand
- Lenovo
- Category
- CPU
- Model
- Intel Xeon E5507
- Part number
- 69Y1356
- Also known as
- Lenovo Intel Xeon E5507 processor 2.26 GHz 4 MB L2 Tray
Specifications
18 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5507 |
| Processor base frequency | 2.26 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 4 |
| System bus rate | 4.8 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
| Bandwidth | 19660.8 MB/s |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 76 °C |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 42.5 x 0 x 45 mm |
