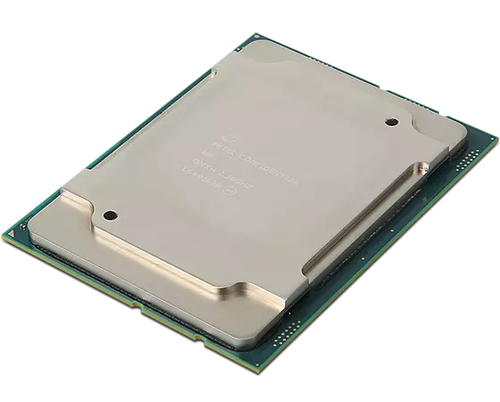

Lenovo Intel Xeon E5-2697V4

Lenovo Intel Xeon E5-2697V4

Model Intel Xeon E5-2697V4Part no. 00YD977

53 specifications Checked 2 days ago
  • ProcessorIntel® Xeon® E5 v4
  • Maximum internal memory supported by processor1.53 TB
  • On-board graphics cardNo
  • Execute Disable BitYes
  • Tcase86 °C
See all specifications

Overview

Processor
Intel® Xeon® E5 v4
Maximum internal memory supported by processor
1.53 TB
On-board graphics card
No
Execute Disable Bit
Yes
Tcase
86 °C
Brand
Lenovo
Category
CPU
Model
Intel Xeon E5-2697V4
Part numbers
00YD977, 00YE544, 00YE734, 00YJ230
Also known as
Lenovo Intel Xeon E5-2697V4 processor 2.4 GHz 35 MB Smart Cache

Specifications

53 specifications in 6 groups

Processor

Processor familyIntel® Xeon® E5 v4
Processor modelE5-2697V4
Processor base frequency2.4 GHz
Processor cores14
Processor socketLGA 2011-v3
Processor lithography14 nm
Component forServer/workstation
Processor threads28
System bus rate9.6 GT/s
Processor operating modes64-bit
Processor boost frequency3.3 GHz
Processor cache35 MB
Processor cache typeSmart Cache
Thermal Design Power (TDP)120 W
Bus typeQPI
Number of QPI links2
Memory bandwidth supported by processor (max)76.8 GB/s

Memory

Maximum internal memory supported by processor1.53 TB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor1600,1866,2133,2400 MHz
Memory channelsQuad-channel
ECCYes

Graphics

On-board graphics cardNo

Features

Execute Disable BitYes
Idle StatesYes
Thermal Monitoring TechnologiesYes
Market segmentServer
Maximum number of PCI Express lanes40
PCI Express slots version3.0
Supported instruction setsAVX 2.0
CPU configuration (max)2
Embedded options availableYes
Physical Address Extension (PAE)46 bit
Physical Address Extension (PAE)Yes

Processor special features

Enhanced Intel SpeedStep TechnologyYes
Intel Flex Memory AccessNo
Intel Trusted Execution TechnologyYes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)No
Intel® Turbo Boost Technology2.0
Conflict-Free processorYes
Intel 64Yes
Intel Demand Based SwitchingYes
Intel Enhanced Halt StateYes
Intel TSX-NIYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® OS GuardYes
Intel® Secure KeyYes
Intel® vPro™ Platform EligibilityYes

Operational conditions

Tcase86 °C
