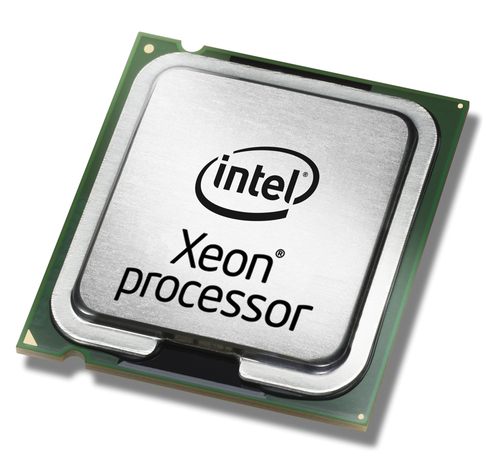

Lenovo Intel Xeon E5-2603V4

Lenovo Intel Xeon E5-2603V4

Model Intel Xeon E5-2603V4Part no. 4XG0G89088EAN 190151284197

63 specifications Checked 2 days ago
  • ProcessorIntel® Xeon® E5 v4
  • Type4
  • Maximum internal memory supported by processor1.53 TB
  • On-board graphics cardNo
  • Execute Disable BitYes
  • Tcase73 °C
See all specifications

Overview

Processor
Intel® Xeon® E5 v4
Type
4
Maximum internal memory supported by processor
1.53 TB
On-board graphics card
No
Execute Disable Bit
Yes
Tcase
73 °C
Brand
Lenovo
Category
CPU
Model
Intel Xeon E5-2603V4
Part number
4XG0G89088
EAN / UPC
190151284197
Also known as
Lenovo Xeon Intel E5-2603V4 processor 1.7 GHz 15 MB Smart Cache Tray

Specifications

63 specifications in 8 groups

Processor

Processor familyIntel® Xeon® E5 v4
Processor modelE5-2603V4
Processor base frequency1.7 GHz
Processor cores6
Processor socketLGA 2011-v3
Processor lithography14 nm
Package typeTray
Component forServer/workstation
Processor seriesIntel Xeon E5-2600 v4
Processor threads6
System bus rate6.4 GT/s
Processor operating modes64-bit
Processor cache15 MB
Processor cache typeSmart Cache
Thermal Design Power (TDP)85 W
VID Voltage Range0 - 0 V
SteppingR0
Bus typeQPI
Number of QPI links2
Memory bandwidth supported by processor (max)59.7 GB/s
Processor codenameBroadwell
Processor codeSR2P0
Processor ARK ID92993

Memory

Maximum internal memory supported by processor1.53 TB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor1600,1866 MHz
Memory channelsQuad-channel
ECCYes

Graphics

On-board graphics cardNo

Features

Execute Disable BitYes
Idle StatesYes
Thermal Monitoring TechnologiesYes
Market segmentServer
Maximum number of PCI Express lanes40
PCI Express slots version3.0
Supported instruction setsAVX 2.0
CPU configuration (max)2
Embedded options availableNo
Physical Address Extension (PAE)46 bit
Physical Address Extension (PAE)Yes
Scalability2S

Processor special features

Enhanced Intel SpeedStep TechnologyYes
Intel Flex Memory AccessNo
Intel Trusted Execution TechnologyYes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)No
Intel® Turbo Boost TechnologyNo
Conflict-Free processorYes
Intel 64Yes
Intel Demand Based SwitchingYes
Intel Enhanced Halt StateYes
Intel TSX-NIYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® OS GuardYes
Intel® Secure KeyYes
Intel® vPro™ Platform EligibilityYes

Operational conditions

Tcase73 °C

Technical details

Processor cache15360 KB
Product type4

Weight & dimensions

Processor package size52.5 x 51 mm
