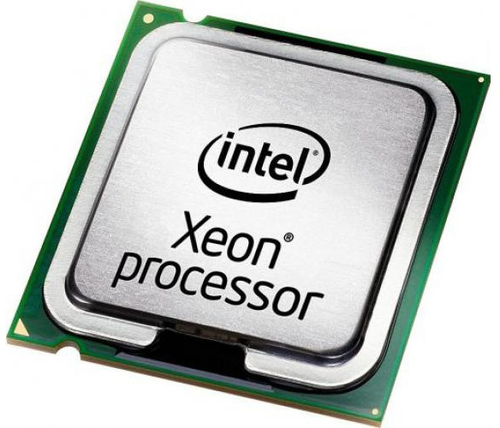

Lenovo Intel Xeon E5-2428L
Model Intel Xeon E5-2428LPart no. 00D1271EAN 883436295000
43 specifications Checked 3 days ago
- ProcessorIntel® Xeon® E5 Family
- Maximum internal memory supported by processor384 GB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase89 °C
Overview
- Processor
- Intel® Xeon® E5 Family
- Maximum internal memory supported by processor
- 384 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 89 °C
- Brand
- Lenovo
- Category
- CPU
- Model
- Intel Xeon E5-2428L
- Part number
- 00D1271
- EAN / UPC
- 883436295000, 4053162400481
- Also known as
- Lenovo Intel Xeon E5-2428L processor 1.8 GHz 15 MB L3
Specifications
43 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2428L |
| Processor base frequency | 1.8 GHz |
| Processor cores | 6 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor lithography | 32 nm |
| Component for | Server/workstation |
| Processor threads | 12 |
| System bus rate | 7.2 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2 GHz |
| Processor cache | 15 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 60 W |
| Bus type | QPI |
| Number of QPI links | 1 |
| Processor codename | Sandy Bridge |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 384 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Embedded |
| Maximum number of PCI Express lanes | 24 |
| PCI Express slots version | 3.0 |
| CPU configuration (max) | 2 |
| Embedded options available | Yes |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 89 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
