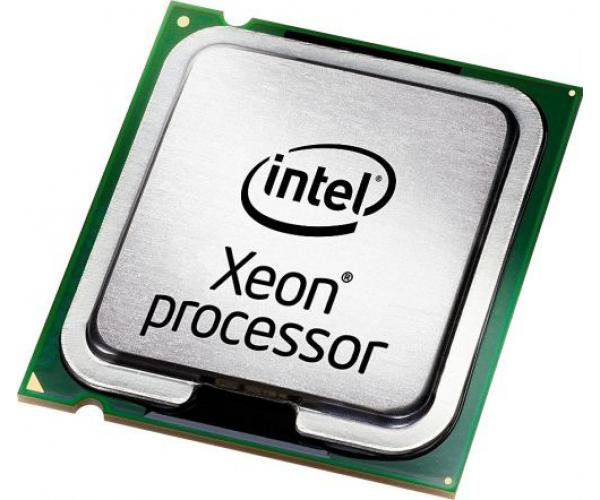

Lenovo Intel Xeon E5-2420
Model Intel Xeon E5-2420Part no. 00D7098EAN 883436293334
49 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E5 Family
- Maximum internal memory supported by processor375 GB
- Execute Disable BitYes
- Processor package size45 mm
Overview
- Processor
- Intel® Xeon® E5 Family
- Maximum internal memory supported by processor
- 375 GB
- Execute Disable Bit
- Yes
- Processor package size
- 45 mm
- Brand
- Lenovo
- Category
- CPU
- Model
- Intel Xeon E5-2420
- Part numbers
- 00D7098, 0A89447, 00D1264, 00D7101
- EAN / UPC
- 883436293334, 088021519022, 132017862972, 151903553978 +8 more
- Also known as
- Lenovo Intel Xeon E5-2420 processor 1.9 GHz 15 MB L3
Specifications
49 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2420 |
| Processor base frequency | 1.9 GHz |
| Processor cores | 6 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor lithography | 32 nm |
| Component for | Server/workstation |
| Processor threads | 12 |
| System bus rate | 7.2 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.4 GHz |
| Processor cache | 15 MB |
| Processor cache type | L3 |
| L3 cache speed | 1.9 GHz |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.6 - 1.35 V |
| Stepping | C2 |
| Bus type | QPI |
| Number of QPI links | 1 |
| Memory bandwidth supported by processor (max) | 32 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 375 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Scalability | S2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 45 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
