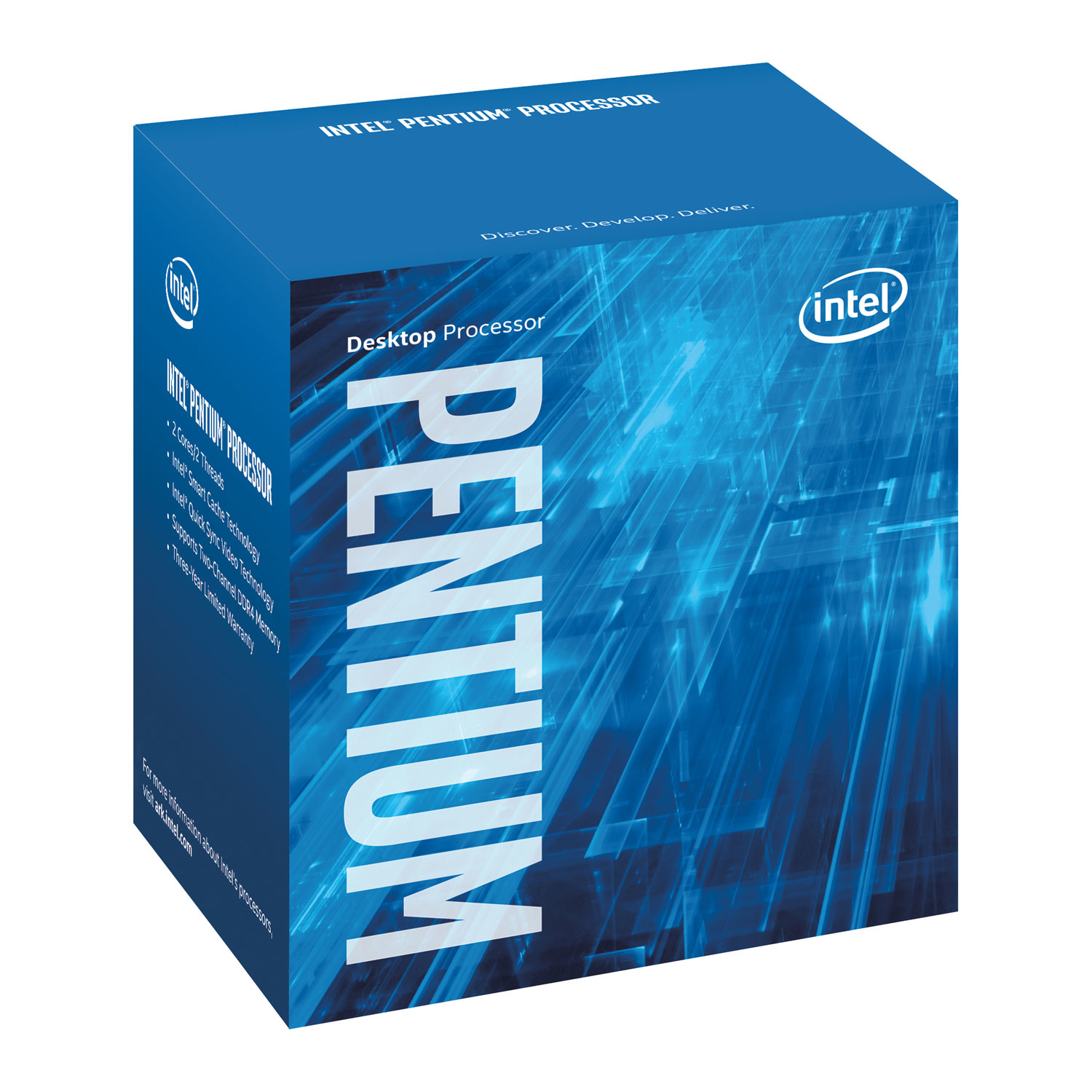

Pentium G4560 processor
3.50 GHz 3 MB Smart Cache Box
Model G4560Part no. BX80662G4560
108 specifications Checked today
- ProcessorIntel Pentium G
- TypeProcessor
- Maximum internal memory supported by processor64 GB
- On-board graphics cardYes
- Tjunction100 °C
- Processor package size37.5 x 37.5 mm
Overview
- Processor
- Intel Pentium G
- Type
- Processor
- Maximum internal memory supported by processor
- 64 GB
- On-board graphics card
- Yes
- Tjunction
- 100 °C
- Processor package size
- 37.5 x 37.5 mm
- Brand
- Lenovo
- Category
- CPU
- Model
- G4560
- Part number
- BX80662G4560
- Also known as
- Lenovo Pentium G4560 processor 3.50 GHz 3 MB Smart Cache Box
Specifications
108 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel Pentium G |
| Processor model | G4560 |
| Processor base frequency | 3.50 GHz |
| Processor cores | 2 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Package type | Box |
| Component for | PC |
| Processor series | Intel Pentium G4500 Series For Desktop |
| Processor threads | 4 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 54 W |
| Compatible chipsets | Intel® B150, Intel® H110, Intel® H170, Intel Q150, Intel® Q170, Intel® Z170 |
| Stepping | B0 |
| Bus type | DMI3 |
| Number of QPI links | 0 |
| Processor codename | Kaby Lake |
| Processor code | SR32Y |
| Processor ARK ID | 97143 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| Memory voltage supported by processor | 1.35 V |
| Memory channels | Dual-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 610 |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card 4K support | Yes |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card maximum resolution (DisplayPort) | 4096 x 2304 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2304 pixels |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 24 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
| On-board graphics card ID | 0x5902 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Desktop |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| Scalability | 1S |
| Thermal solution specification | PCG 2015C |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Boot Guard | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® OS Guard | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | No |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 100 °C |
Technical details
| Specification | Value |
|---|---|
| Maximum graphics card memory | 64 GB |
| Processor cache | 3072 KB |
| Product type | Processor |
| Bus bandwidth | 8 |
| Bus speed | 8 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q1'17 |
| Maximum memory | 64 GB |
| Maximum resolution & refresh rate (DisplayPort) | 4096x2304@60Hz |
| Maximum resolution & refresh rate (HDMI) | 4096x2304@24Hz |
| Maximum resolution & refresh rate (Integrated Flat Panel) | 4096x2304@60Hz |
| Processor ID | 0x5902 |
| Processor brand name | Intel Pentium |
| Product family | Intel Pentium Processor |
| Status | Launched |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8542310001 |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 x 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Maximum internal memory | 65536 MB |
| Video decoding | Yes |
