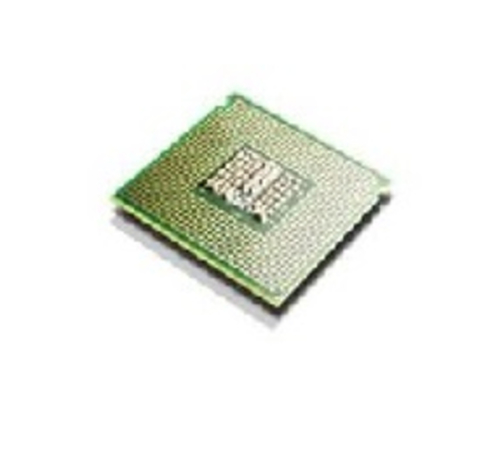

Lenovo E5-2630L v3
Model E5-2630L v3Part no. 00JX061EAN 883436636636
50 specifications Checked 3 days ago
- ProcessorIntel Xeon E5 v3
- Maximum internal memory supported by processor768 GB
- Execute Disable BitYes
- Tcase60.4 °C
Overview
- Processor
- Intel Xeon E5 v3
- Maximum internal memory supported by processor
- 768 GB
- Execute Disable Bit
- Yes
- Tcase
- 60.4 °C
- Brand
- Lenovo
- Category
- CPU
- Model
- E5-2630L v3
- Part number
- 00JX061
- EAN / UPC
- 883436636636
- Also known as
- Lenovo E5-2630L v3 processor 1.8 GHz 20 MB L3
Specifications
50 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-2630LV3 |
| Processor base frequency | 1.8 GHz |
| Processor cores | 8 |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor threads | 16 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.9 GHz |
| Processor cache | 20 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 55 W |
| VID Voltage Range | 0.65 - 1.30 V |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 59 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Scalability | 2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Demand Based Switching | Yes |
| Intel TSX-NI | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 60.4 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
