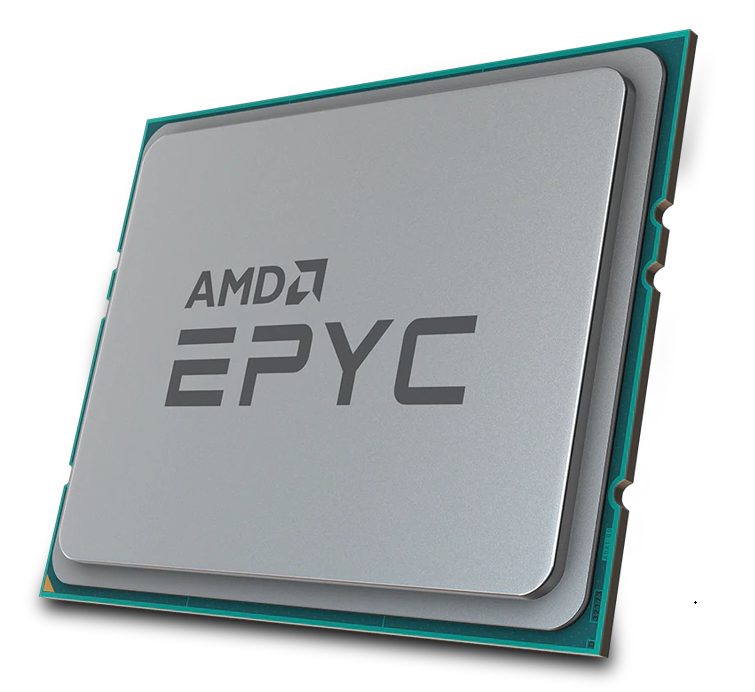

AMD EPYC 7763
Model AMD EPYC 7763Part no. 4XG7A63585EAN 889488572335
27 specifications Checked today
- ProcessorAMD EPYC
- GraphicsNot available
- Processor manufacturerAMD
- Memory types supported by processorDDR4-SDRAM
- Discrete graphics cardNo
- Market segmentServer
Overview
- Processor
- AMD EPYC
- Graphics
- Not available
- Processor manufacturer
- AMD
- Memory types supported by processor
- DDR4-SDRAM
- Discrete graphics card
- No
- Market segment
- Server
- Brand
- Lenovo
- Category
- CPU
- Model
- AMD EPYC 7763
- Part numbers
- 4XG7A63585, 4XG7A63604
- EAN / UPC
- 889488572335, 889488572519
- Also known as
- Lenovo AMD EPYC 7763 processor 2.45 GHz 256 MB L3
Specifications
27 specifications in 5 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 7763 |
| Processor base frequency | 2.45 GHz |
| Processor cores | 64 |
| Processor socket | Socket SP3 |
| Cooler included | No |
| Component for | Server/workstation |
| Processor threads | 128 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.5 GHz |
| Processor cache | 256 MB |
| Processor cache type | L3 |
| L3 cache speed | 280 GHz |
| Thermal Design Power (TDP) | 280 W |
Memory
| Specification | Value |
|---|---|
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 3200 MHz |
| Memory channels | Octa-channel |
| Memory bandwidth (max) | 204.8 GB/s |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
| Maximum number of PCI Express lanes | 128 |
| PCI Express slots version | 4.0 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85423119 |
