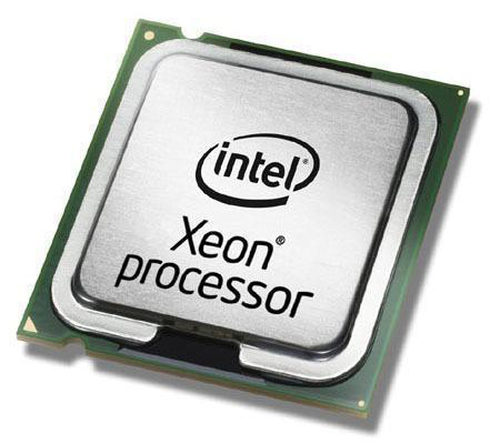

HP X5672 processor
3.2 GHz 12 MB L3 Tray
Model X5672Part no. LB196AV
25 specifications Checked 5 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor288 GB
- Market segmentServer
- Maximum operating temperature82.9 °C
- Width45 mm
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 288 GB
- Market segment
- Server
- Maximum operating temperature
- 82.9 °C
- Width
- 45 mm
- Brand
- HP
- Category
- CPU
- Model
- X5672
- Part numbers
- LB196AV, LB189AV, LB182AV, LB205AV
- Also known as
- HP X5672 processor 3.2 GHz 12 MB L3 Tray
Specifications
25 specifications in 5 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | X5672 |
| Processor base frequency | 3.2 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 6.4 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 0 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.750 - 1.350 V |
| CPU multiplier (bus/core ratio) | 24 |
| Memory bandwidth supported by processor (max) | 32 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 288 GB |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory channels | Triple-channel |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 82.9 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 45 mm |
| Height | 42.5 mm |
