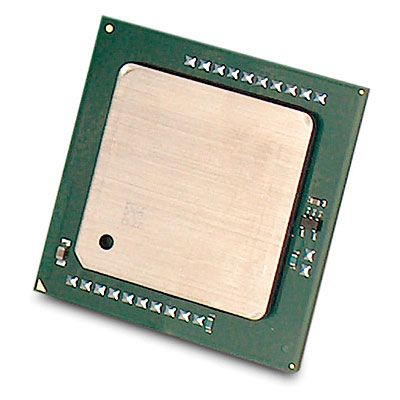

HP L5640 processor
2.26 GHz 12 MB L3 Tray
Model L5640Part no. 611127-L21EAN 5711045880407
26 specifications Checked 4 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor288 GB
- Market segmentServer
- Maximum operating temperature69.4 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 288 GB
- Market segment
- Server
- Maximum operating temperature
- 69.4 °C
- Brand
- HP
- Category
- CPU
- Model
- L5640
- Part number
- 611127-L21
- EAN / UPC
- 5711045880407
- Also known as
- HP L5640 processor 2.26 GHz 12 MB L3 Tray
Specifications
26 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | L5640 |
| Processor base frequency | 2.26 GHz |
| Processor cores | 6 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 12 |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.8 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 60 W |
| VID Voltage Range | 0.750 - 1.350 V |
| Stepping | B1 |
| CPU multiplier (bus/core ratio) | 17 |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| Processor code | SLBV8 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 288 GB |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 69.4 °C |
