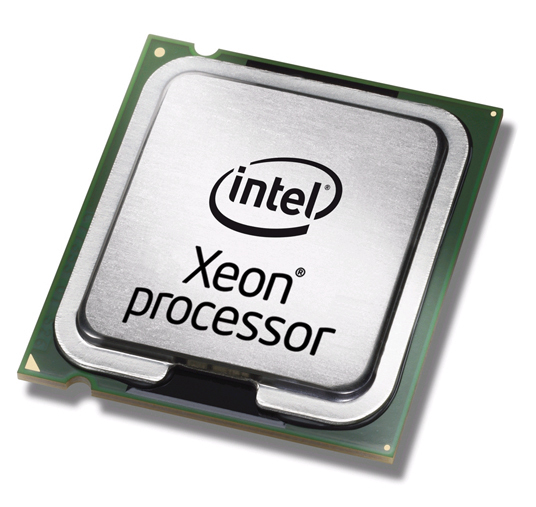

HP Intel Xeon X5460, Ref
Model Intel Xeon X5460, RefPart no. 458581R-B21
30 specifications Checked 3 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase63 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 63 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon X5460, Ref
- Part numbers
- 458581R-B21, 458408R-B21, 493457R-B21
- Also known as
- HP Intel Xeon X5460, Ref processor 3.16 GHz 12 MB L2
Specifications
30 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | X5460 |
| Processor base frequency | 3.16 GHz |
| Processor cores | 4 |
| Processor socket | LGA 771 (Socket J) |
| Processor lithography | 45 nm |
| Component for | Server/workstation |
| Processor threads | 4 |
| Processor operating modes | 32-bit, 64-bit |
| Processor cache | 12 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Thermal Design Power (TDP) | 120 W |
| VID Voltage Range | 0.850 - 1.350 V |
| FSB Parity | Yes |
| Stepping | C0 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Number of Graphics & IMC Die Transistors | 820 M |
| Graphics & IMC Die Size | 214 mm² |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 63 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
