HP Intel Xeon L5640, FIO Kit
Model Intel Xeon L5640, FIO KitPart no. 598141-L21EAN 4054842152706
42 specifications Checked 3 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor288 GB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase69.4 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 288 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 69.4 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon L5640, FIO Kit
- Part number
- 598141-L21
- EAN / UPC
- 4054842152706, 5711045879050
- Also known as
- HP Intel Xeon L5640, FIO Kit processor 2.26 GHz 12 MB L3
Specifications
42 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | L5640 |
| Processor base frequency | 2.26 GHz |
| Processor cores | 6 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Component for | Server/workstation |
| Processor threads | 12 |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 32-bit, 64-bit |
| Processor boost frequency | 2.8 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 60 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Stepping | B1 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 32 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 288 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| Supported instruction sets | SSE4.2 |
| Embedded options available | Yes |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 69.4 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
What people say
Reviews & ratings
HP Intel Xeon L5640, FIO Kit
No reviews yet
Be the first to tell others how HP Intel Xeon L5640, FIO Kit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare HP Intel Xeon L5640, FIO Kit
All cpu comparisons- HP Intel Xeon L5640, FIO Kit vsHP AMD Phenom II X2 B60Compare specs

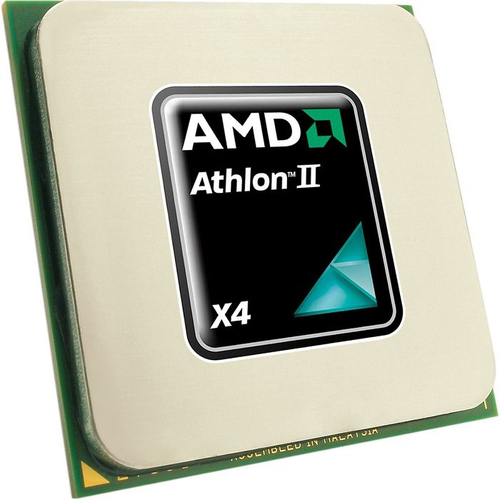

- HP Intel Xeon L5640, FIO Kit vsHP AMD Athlon II X4 605eCompare specs
