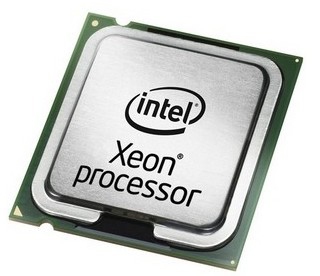

HP Intel Xeon L5640
Model Intel Xeon L5640Part no. 592325R-B21EAN 4054842153499
23 specifications Checked 3 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor288 GB
- Market segmentServer
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 288 GB
- Market segment
- Server
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon L5640
- Part numbers
- 592325R-B21, 590607-B21-RF, 588078-B21-RF, 610863-L21, 611149R-B21, 631487R-B21 +2 more
- EAN / UPC
- 4054842153499, 5711045880216, 886111058464, 886111142736 +2 more
- Also known as
- HP Intel Xeon L5640 processor 2.26 GHz 12 MB L3
Specifications
23 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | L5640 |
| Processor base frequency | 2.26 GHz |
| Processor cores | 6 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Component for | Server/workstation |
| Processor threads | 12 |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.8 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 60 W |
| VID Voltage Range | 0.75 - 1.35 V |
| CPU multiplier (bus/core ratio) | 17 |
| Memory bandwidth supported by processor (max) | 32 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 288 GB |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
Other features
| Specification | Value |
|---|---|
| Temperature (max) | 69.4 °C |
