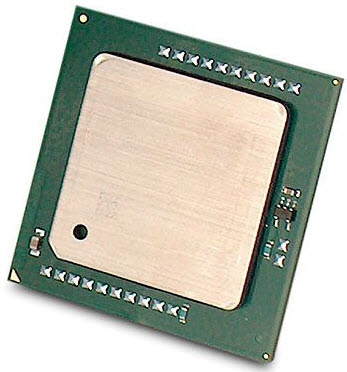

HP Intel Xeon L5630
Model Intel Xeon L5630Part no. 598142R-B21EAN 4054842154915
27 specifications Checked 2 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor288 GB
- On-board graphics cardNo
- Market segmentDesktop
- Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 288 GB
- On-board graphics card
- No
- Market segment
- Desktop
- Intel® Hyper Threading Technology (Intel® HT Technology)
- Yes
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon L5630
- Part numbers
- 598142R-B21, 601252-L21-RFB, 600742-B21, 590605-B21-RF, 603606-L21, 637855-L21 +8 more
- EAN / UPC
- 4054842154915, 5711045881244, 4054842510704, 885631488416 +7 more
- Also known as
- HP Intel Xeon L5630 processor 2.13 GHz 12 MB L3
Specifications
27 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | L5630 |
| Processor base frequency | 2.13 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Component for | PC |
| Processor threads | 8 |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.4 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 40 W |
| VID Voltage Range | 0.750 - 1.350 V |
| CPU multiplier (bus/core ratio) | 16 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 288 GB |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Market segment | Desktop |
Processor special features
| Specification | Value |
|---|---|
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | Yes |
Other features
| Specification | Value |
|---|---|
| L1 cache | 256 MB |
| Temperature (max) | 63.1 °C |
