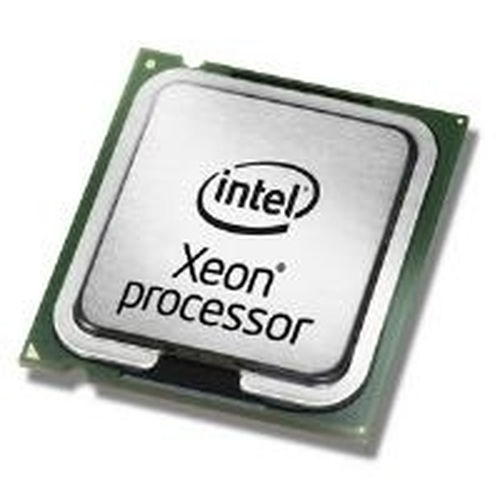

HP Intel Xeon L5430
Model Intel Xeon L5430Part no. 495616-B21-RFBEAN 5711783556060
26 specifications Checked 7 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase57 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 57 °C
- Processor package size
- 37.5 mm
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon L5430
- Part numbers
- 495616-B21-RFB, 495616-B21, 483266-B21, 493764-B21, 493216-B21, 487513-L21 +5 more
- EAN / UPC
- 5711783556060, 884420186366, 4054317550495, 883585901463 +10 more
- Also known as
- HP Intel Xeon L5430 processor 2.66 GHz 12 MB L2
Specifications
26 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | L5430 |
| Processor base frequency | 2.66 GHz |
| Processor cores | 4 |
| Processor socket | LGA 771 (Socket J) |
| Processor lithography | 45 nm |
| Component for | Server/workstation |
| Processor operating modes | 64-bit |
| Processor cache | 12 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Thermal Design Power (TDP) | 50 W |
| VID Voltage Range | 0.850 - 1.3500 V |
| FSB Parity | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Number of Processing Die Transistors | 820 M |
| Processing Die size | 214 mm² |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 57 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
