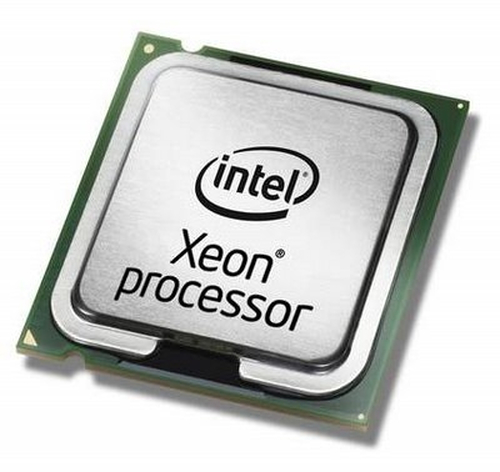

HP Intel Xeon L5420
Model Intel Xeon L5420Part no. 487901R-B21EAN 883585667574
36 specifications Checked 6 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Weight2.04 kg
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase57 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Weight
- 2.04 kg
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 57 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon L5420
- Part numbers
- 487901R-B21, 495479-B21-RFB, 464891-B21, 466658-B21, 495479-B21, 505605-001 +9 more
- EAN / UPC
- 883585667574, 4054317526001, 4948382554765, 8835856675742 +10 more
- Also known as
- HP Intel Xeon L5420 processor 2.5 GHz 12 MB L2
Specifications
36 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | L5420 |
| Processor base frequency | 2.5 GHz |
| Processor cores | 4 |
| Processor socket | LGA 771 (Socket J) |
| Processor lithography | 45 nm |
| Component for | Server/workstation |
| Processor threads | 4 |
| Processor operating modes | 64-bit |
| Processor cache | 12 MB |
| Processor cache type | L2 |
| L2 cache speed | 2.5 GHz |
| Processor front side bus | 1333 MHz |
| Thermal Design Power (TDP) | 50 W |
| VID Voltage Range | 0.85 - 1.35 V |
| Compatible chipsets | Intel® 5000P, Intel® 5000V, Intel® 5000X, Intel® 5100, Intel® 5400 |
| FSB Parity | Yes |
| Stepping | E0 |
| CPU multiplier (bus/core ratio) | 7.5 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Number of Processing Die Transistors | 820 M |
| Processing Die size | 214 mm² |
| Embedded options available | No |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 57 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.04 kg |
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Dimensions (WxDxH) | 160 x 57.1 x 414 mm |
