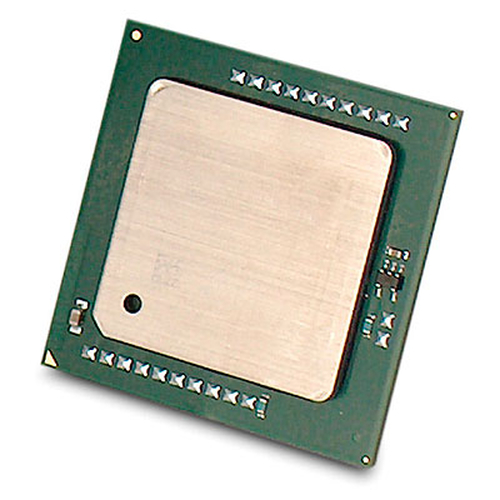

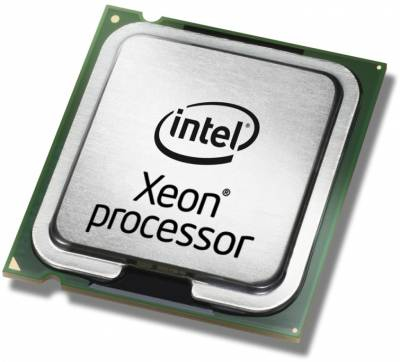

HP Intel Xeon L3406
Model Intel Xeon L3406Part no. 600129-001EAN 4054842504604
48 specifications Checked 4 days ago
- ProcessorIntel® Xeon® 3000 Sequence
- Memory types supported by processorDDR3-SDRAM
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase53.9 °C
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- Memory types supported by processor
- DDR3-SDRAM
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 53.9 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon L3406
- Part number
- 600129-001
- EAN / UPC
- 4054842504604
- Also known as
- HP Intel Xeon L3406 processor 2.26 GHz 4 MB L3
Specifications
48 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | L3406 |
| Processor base frequency | 2.26 GHz |
| Processor cores | 2 |
| Processor socket | LGA 1156 (Socket H) |
| Processor lithography | 32 nm |
| Component for | Server/workstation |
| Processor threads | 4 |
| System bus rate | 2.5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.53 GHz |
| Processor cache | 4 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 30 W |
| VID Voltage Range | 0.65 - 1.4 V |
| Bus type | DMI |
| Memory bandwidth supported by processor (max) | 17 GB/s |
Memory
| Specification | Value |
|---|---|
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | No |
| Market segment | Server |
| Maximum number of PCI Express lanes | 1 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16, 2x8 |
| Number of Processing Die Transistors | 382 M |
| Processing Die size | 81 mm² |
| Number of Graphics & IMC Die Transistors | 177 M |
| Graphics & IMC Die Size | 114 mm² |
| Embedded options available | No |
| Graphics & IMC lithography | 45 nm |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | No |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 53.9 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
