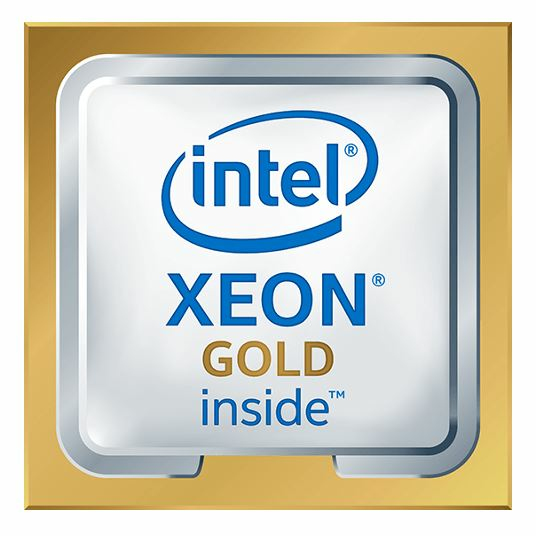

HP Intel Xeon Gold 6134M
Model Intel Xeon Gold 6134MPart no. 873645-B21
53 specifications Checked 2 days ago
- ProcessorIntel® Xeon® Gold
- GraphicsNot available
- Processor manufacturerIntel
- Maximum internal memory supported by processor1.5 TB
- Discrete graphics cardNo
- Execute Disable BitYes
Overview
- Processor
- Intel® Xeon® Gold
- Graphics
- Not available
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 1.5 TB
- Discrete graphics card
- No
- Execute Disable Bit
- Yes
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon Gold 6134M
- Part numbers
- 873645-B21, 876087-B21, 880215-B21, 2DL85AV, 2DL84AV
- Also known as
- HP Intel Xeon Gold 6134M processor 3.2 GHz 24.75 MB L3
Specifications
53 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor model | 6134M |
| Processor base frequency | 3.2 GHz |
| Processor cores | 8 |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Component for | Server/workstation |
| Processor series | Intel Xeon Gold 6000 Series |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.7 GHz |
| Processor cache | 24.75 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 130 W |
| Bus type | UPI |
| Processor codename | Skylake |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1.5 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AES-NI, AVX, AVX 2.0, AVX-512 |
| Embedded options available | No |
| Scalability | S4S |
| HP segment | Business |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 79 °C |
Other features
| Specification | Value |
|---|---|
| Compatibility | DL380 GEN10 |
