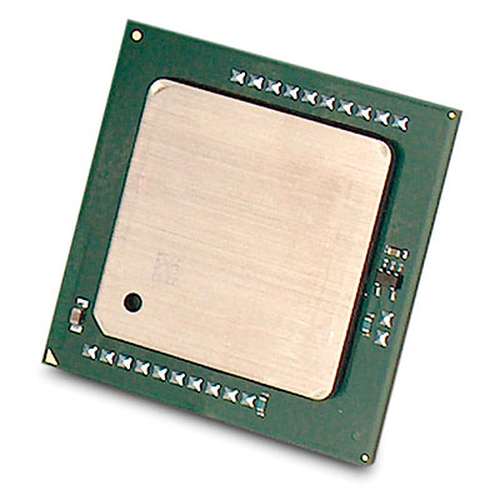

HP Intel Xeon E7520
Model Intel Xeon E7520Part no. 595245R-L21
23 specifications Checked 3 days ago
- ProcessorIntel® Xeon® 7000 Sequence
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase70 °C
Overview
- Processor
- Intel® Xeon® 7000 Sequence
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 70 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E7520
- Part numbers
- 595245R-L21, 595245-B21, 595245R-B21, 630839R-B21, 597868R-B21, 597868R-L21
- Also known as
- HP Intel Xeon E7520 processor 1.866 GHz 18 MB L3
Specifications
23 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 7000 Sequence |
| Processor model | E7520 |
| Processor base frequency | 1.866 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1567 (Socket LS) |
| Processor lithography | 45 nm |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 4.8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 1.866 GHz |
| Processor cache | 18 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.675 - 1.35 V |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Market segment | Server |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 70 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
