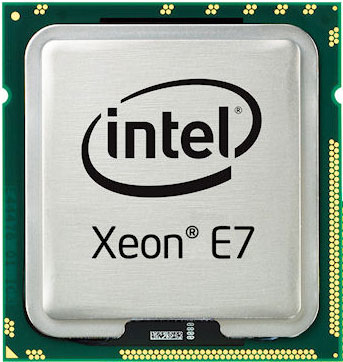

Intel Xeon E7-4880 v2
Model Intel Xeon E7-4880 v2Part no. SR1GM
48 specifications Checked today
- ProcessorIntel® Xeon® E7 V2 Family
- GraphicsNot available
- Processor manufacturerIntel
- Maximum internal memory supported by processor1.53 TB
- Discrete graphics cardNo
- Execute Disable BitYes
Overview
- Processor
- Intel® Xeon® E7 V2 Family
- Graphics
- Not available
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 1.53 TB
- Discrete graphics card
- No
- Execute Disable Bit
- Yes
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E7-4880 v2
- Part number
- SR1GM
- Also known as
- HP Intel Xeon E7-4880 v2 processor 2.5 GHz 37.5 MB L3
Specifications
48 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E7 V2 Family |
| Processor model | E7-4880V2 |
| Processor base frequency | 2.5 GHz |
| Processor cores | 15 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor threads | 30 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.1 GHz |
| Processor cache | 37.5 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 130 W |
| Bus type | QPI |
| Number of QPI links | 3 |
| Memory bandwidth supported by processor (max) | 85 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333,1600 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 32 |
| PCI Express slots version | 3.0 |
| Embedded options available | No |
| Scalability | S4S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel TSX-NI | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 73 °C |
Packaging data
| Specification | Value |
|---|---|
| Package width | 52 mm |
| Package depth | 45 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d |
