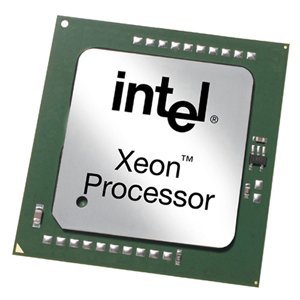

HP Intel Xeon E5620
Model Intel Xeon E5620Part no. WG702AVEAN 885631643488
20 specifications Checked 4 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Market segmentServer
- Maximum operating temperature77.6 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Market segment
- Server
- Maximum operating temperature
- 77.6 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E5620
- Part numbers
- WG702AV, WG692AV, 611125-L21, QN031A, QN032A, QN146A +17 more
- EAN / UPC
- 885631643488, 5711045879180, 5711045880377
- Also known as
- HP Intel Xeon E5620 processor 2.4 GHz 12 MB L3 Tray
Specifications
20 specifications in 3 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5620 |
| Processor base frequency | 2.4 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| L3 cache speed | 2.4 GHz |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.800 - 1.300 V |
| Stepping | B1 |
| CPU multiplier (bus/core ratio) | 18 |
| Processor code | SLBV4 |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 77.6 °C |
