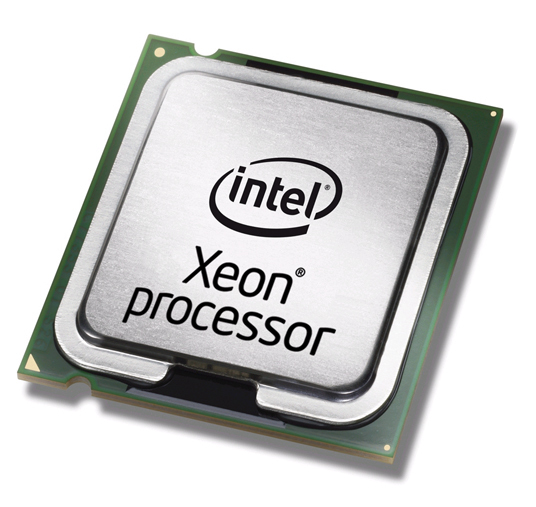

HP Intel Xeon E5606, Ref
Model Intel Xeon E5606, RefPart no. 533442-B21-RFBEAN 5712505158258
38 specifications Checked 3 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor288 GB
- On-board graphics cardNo
- Execute Disable BitYes
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 288 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E5606, Ref
- Part number
- 533442-B21-RFB
- EAN / UPC
- 5712505158258
- Also known as
- HP Intel Xeon E5606, Ref processor 2.13 GHz 8 MB L3
Specifications
38 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5606 |
| Processor base frequency | 2.13 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Component for | Server/workstation |
| Processor threads | 4 |
| System bus rate | 4.8 GT/s |
| Processor operating modes | 32-bit, 64-bit |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Stepping | B1 |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 16 |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 288 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| Supported instruction sets | SSE4.2 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Compatibility | HP DL380 G7 |
