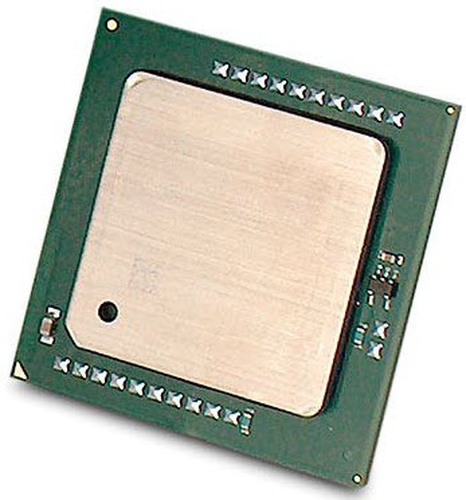

HP Intel Xeon E5603
Model Intel Xeon E5603Part no. 636207-L21EAN 4054842154632
25 specifications Checked 13 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor288 GB
- On-board graphics cardNo
- Market segmentDesktop
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 288 GB
- On-board graphics card
- No
- Market segment
- Desktop
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E5603
- Part numbers
- 636207-L21, 638644-B21
- EAN / UPC
- 4054842154632, 5711045881909, 5711045880957
- Also known as
- HP Intel Xeon E5603 processor 1.6 GHz 4 MB L3
Specifications
25 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5603 |
| Processor base frequency | 1.6 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Component for | PC |
| Processor threads | 4 |
| System bus rate | 4.8 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 4 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.750 - 1.350 V |
| CPU multiplier (bus/core ratio) | 12 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 288 GB |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Market segment | Desktop |
Processor special features
| Specification | Value |
|---|---|
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
Other features
| Specification | Value |
|---|---|
| L1 cache | 0.25 MB |
