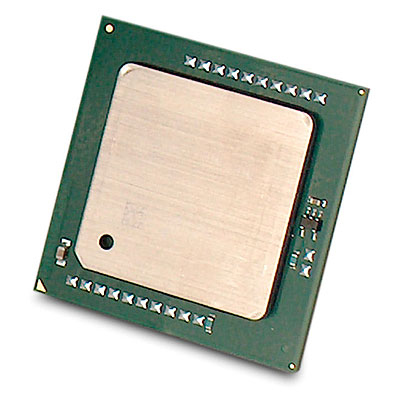

HP Intel Xeon E5530 2.40GHz 8MB 1066MHz 5.86 GT/s QPI 80W
Model Intel Xeon E5530 2.40GHz 8MB 1066MHz 5.86 GT/s QPI 80WPart no. NF149AAEAN 884420543633
28 specifications Checked 7 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor144 GB
- On-board graphics cardNo
- Market segmentServer
- Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 144 GB
- On-board graphics card
- No
- Market segment
- Server
- Intel® Hyper Threading Technology (Intel® HT Technology)
- Yes
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E5530 2.40GHz 8MB 1066MHz 5.86 GT/s QPI 80W
- Part number
- NF149AA
- EAN / UPC
- 884420543633, 5051964635062, 5704327758686
- Also known as
- HP Intel Xeon E5530 2.40GHz 8MB 1066MHz 5.86 GT/s QPI 80W processor 2.4 GHz L3
Specifications
28 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5530 |
| Processor base frequency | 2.4 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 45 nm |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.66 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| Processor front side bus | 1066 MHz |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| CPU multiplier (bus/core ratio) | 18 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 144 GB |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
Processor special features
| Specification | Value |
|---|---|
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | Yes |
| AMD Virtualization Technology | Yes |
Other features
| Specification | Value |
|---|---|
| Size (imperial) | 22.9 cm (9") |
