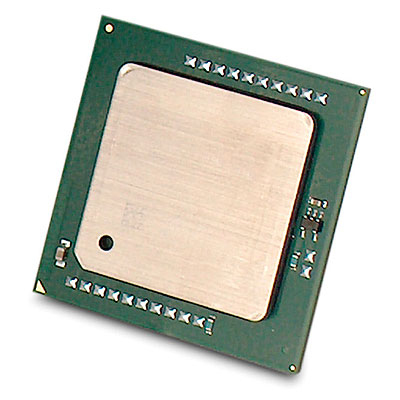

HP Intel Xeon E5504
Model Intel Xeon E5504Part no. 507826R-B21EAN 4054842151020
17 specifications Checked 7 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Market segmentServer
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Market segment
- Server
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E5504
- Part numbers
- 507826R-B21, 512058-B21, 539198-L21, 539266-L21, 570450-L21, NF146AA-RF +9 more
- EAN / UPC
- 4054842151020, 5711045875809, 4054842151112, 5711045875984 +6 more
- Also known as
- HP Intel Xeon E5504 processor 2 GHz 4 MB L2 Tray
Specifications
17 specifications in 2 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5504 |
| Processor base frequency | 2 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 45 nm |
| Package type | Tray |
| Component for | Server/workstation |
| System bus rate | 4.8 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Processor system type | DP |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
