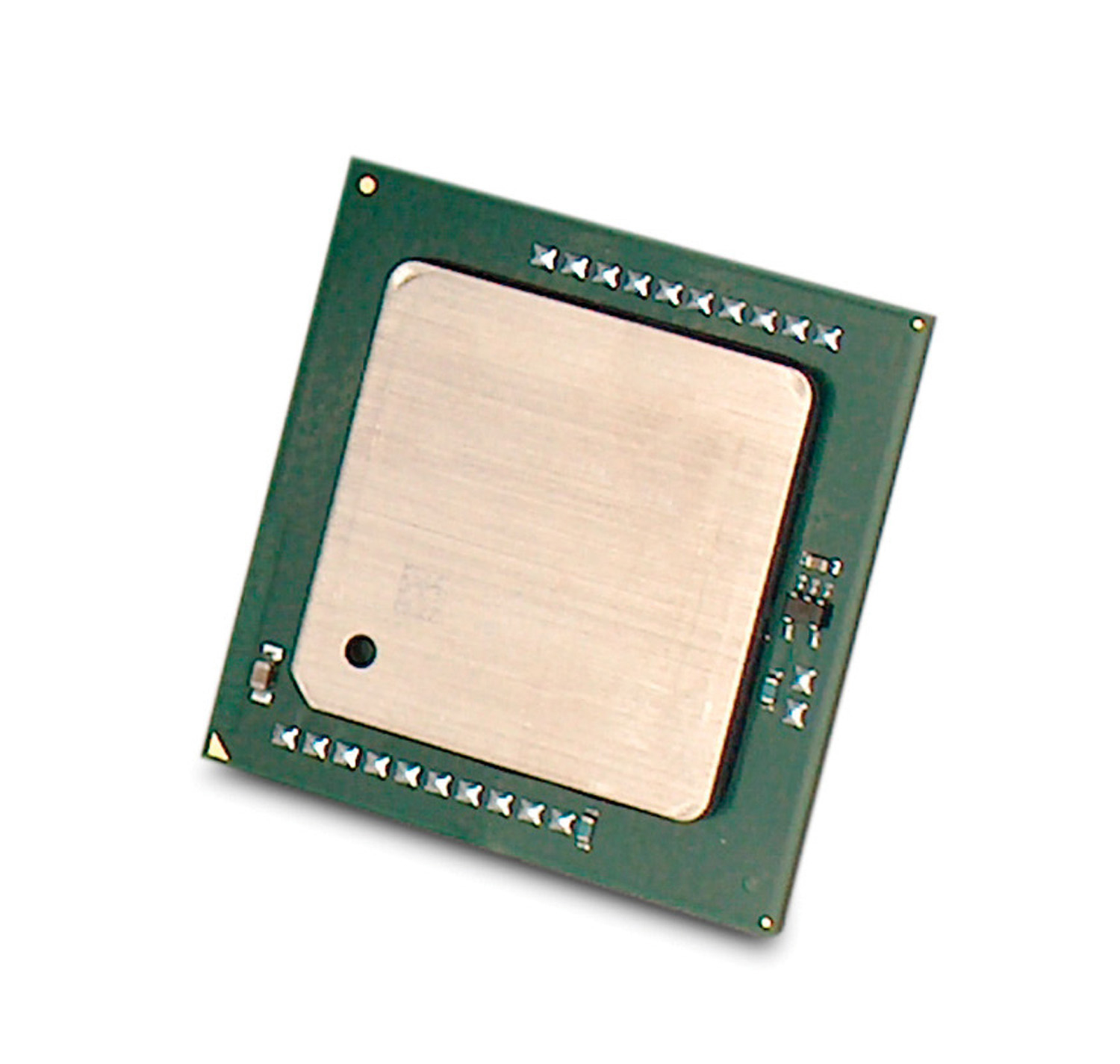

HP Intel Xeon E5405
Model Intel Xeon E5405Part no. 446077-B21-RFBEAN 883585458196
27 specifications Checked 6 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Weight2.04 kg
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase67 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Weight
- 2.04 kg
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 67 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E5405
- Part numbers
- 446077-B21-RFB, 464890-B21-RFB, GX569AA, 446077-B21, 464890-B21, 464890-L21 +6 more
- EAN / UPC
- 883585458196, 8835854581960, 883585065820, 4948382507587 +7 more
- Also known as
- HP Intel Xeon E5405 processor 2 GHz 12 MB L2
Specifications
27 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5405 |
| Processor base frequency | 2 GHz |
| Processor cores | 4 |
| Processor socket | LGA 771 (Socket J) |
| Processor lithography | 45 nm |
| Component for | Server/workstation |
| Processor threads | 4 |
| Processor operating modes | 64-bit |
| Processor cache | 12 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.85 - 1.35 V |
| FSB Parity | Yes |
| CPU multiplier (bus/core ratio) | 6 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Number of Processing Die Transistors | 820 M |
| Processing Die size | 214 mm² |
Processor special features
| Specification | Value |
|---|---|
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 67 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.04 kg |
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
