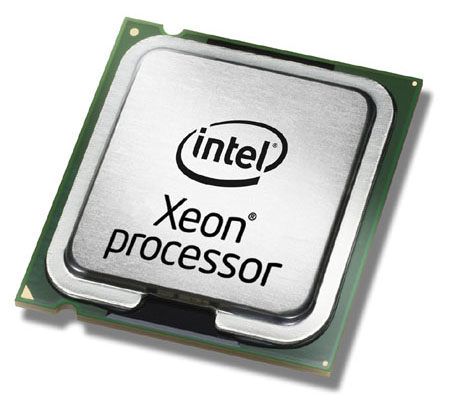

HP Intel Xeon E5320
Model Intel Xeon E5320Part no. 433522R-B21EAN 5711045864384
33 specifications Checked 6 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Weight470 g
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase66 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Weight
- 470 g
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 66 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E5320
- Part numbers
- 433522R-B21, 409157-B21-RFB, 435569-B21-RFB, 409157-B21, 433522-L21, 435512-L21 +2 more
- EAN / UPC
- 5711045864384, 8827803226534, 5712505839683, 4054318652051 +2 more
- Also known as
- HP Intel Xeon E5320 processor 1.86 GHz 8 MB L2
Specifications
33 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5320 |
| Processor base frequency | 1.86 GHz |
| Processor cores | 4 |
| Processor socket | LGA 771 (Socket J) |
| Processor lithography | 65 nm |
| Component for | Server/workstation |
| Processor threads | 4 |
| Processor operating modes | 64-bit |
| Processor cache | 8 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 1 - 1.5 V |
| FSB Parity | Yes |
| CPU multiplier (bus/core ratio) | 7 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Number of Processing Die Transistors | 582 M |
| Processing Die size | 286 mm² |
| Physical Address Extension (PAE) | Yes |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 66 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 470 g |
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Dimensions (WxDxH) | 63.5 x 215.9 x 250.9 mm |
| Size (imperial) | 6.35 cm (2.5") |
