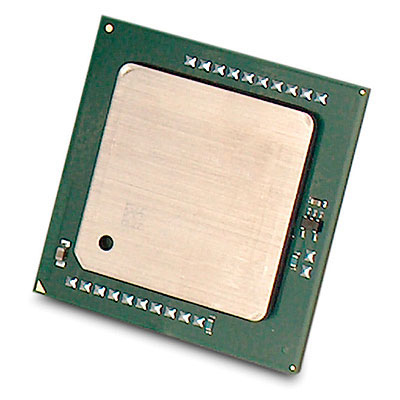

HP Intel Xeon E5-4603
Model Intel Xeon E5-4603Part no. 679108-B21
46 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E5 Family
- Maximum internal memory supported by processor1.5 TB
- Execute Disable BitYes
- Processor package size52.5 mm
Overview
- Processor
- Intel® Xeon® E5 Family
- Maximum internal memory supported by processor
- 1.5 TB
- Execute Disable Bit
- Yes
- Processor package size
- 52.5 mm
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E5-4603
- Part numbers
- 679108-B21, 686826-B21
- Also known as
- HP Intel Xeon E5-4603 processor 2 GHz 10 MB L3
Specifications
46 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-4603 |
| Processor base frequency | 2 GHz |
| Processor cores | 4 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 32 nm |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 6.4 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 10 MB |
| Processor cache type | L3 |
| L3 cache speed | 2 GHz |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.6 - 1.35 V |
| Stepping | M1 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1.5 TB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| CPU configuration (max) | 4 |
| Embedded options available | No |
| Scalability | S4S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 52.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
