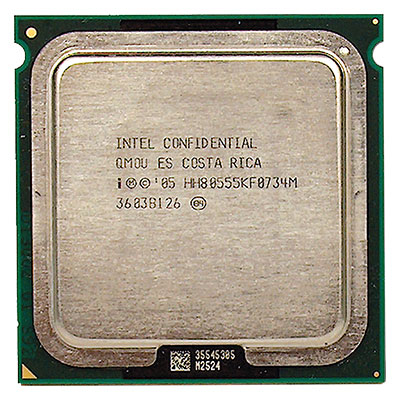

HP Intel Xeon E5-2640 v3
Model Intel Xeon E5-2640 v3Part no. J6F72AVEAN 888793480137
58 specifications Checked 4 days ago
- ProcessorIntel Xeon E5 v3
- Maximum internal memory supported by processor768 GB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase74.3 °C
Overview
- Processor
- Intel Xeon E5 v3
- Maximum internal memory supported by processor
- 768 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 74.3 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E5-2640 v3
- Part numbers
- J6F72AV, J6F53AV, J6F35AV, J6F91AV, 790096-001, J9Q16AA +1 more
- EAN / UPC
- 888793480137, 888793479940, 8887934799406
- Also known as
- HP Z840 Xeon E5-2640v3 2.6GHz 1866MHz 8 Core 2nd CPU
Specifications
58 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-2640V3 |
| Processor base frequency | 2.6 GHz |
| Processor cores | 8 |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 22 nm |
| Cooler included | No |
| Component for | Server/workstation |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor threads | 16 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.4 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 90 W |
| VID Voltage Range | 0.65 - 1.3 V |
| Stepping | R2 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 59 GB/s |
| Processor codename | Haswell |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| CPU configuration (max) | 2 |
| Embedded options available | Yes |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Scalability | 2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel TSX-NI | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 74.3 °C |
Other features
| Specification | Value |
|---|---|
| Compatibility | Z840 |
