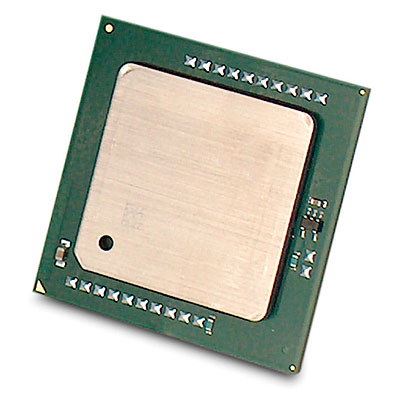

Intel Xeon E5-2403 v2
Model Intel Xeon E5-2403 v2Part no. SR1AL
49 specifications Checked today
- ProcessorIntel® Xeon® E5 Family
- GraphicsNot available
- Processor manufacturerIntel
- Maximum internal memory supported by processor384 GB
- Discrete graphics cardNo
- Execute Disable BitYes
Overview
- Processor
- Intel® Xeon® E5 Family
- Graphics
- Not available
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 384 GB
- Discrete graphics card
- No
- Execute Disable Bit
- Yes
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E5-2403 v2
- Part number
- SR1AL
- Also known as
- HP Intel Xeon E5-2403 v2 processor 1.8 GHz 10 MB L3
Specifications
49 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2403 |
| Processor base frequency | 1.8 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor lithography | 32 nm |
| Component for | Server/workstation |
| Processor threads | 4 |
| System bus rate | 6.4 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 10 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.60 - 1.35 V |
| Bus type | QPI |
| Number of QPI links | 1 |
| Memory bandwidth supported by processor (max) | 25 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 384 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Scalability | 2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Turbo Boost Technology | No |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 45 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
