HP Intel Xeon E3-1245 v2
Model Intel Xeon E3-1245 v2Part no. B9C69AV
55 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E3 V2 Family
- Maximum internal memory supported by processor32 GB
- On-board graphics cardYes
- Processor package size37.5 mm
Overview
- Processor
- Intel® Xeon® E3 V2 Family
- Maximum internal memory supported by processor
- 32 GB
- On-board graphics card
- Yes
- Processor package size
- 37.5 mm
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E3-1245 v2
- Part number
- B9C69AV
- Also known as
- HP Intel Xeon E3-1245 v2 processor 3.4 GHz 8 MB L3
Specifications
55 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E3 V2 Family |
| Processor model | E3-1245V2 |
| Processor base frequency | 3.4 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.8 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 77 W |
| Stepping | E1 |
| Bus type | DMI |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics P4000 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1250 MHz |
| Number of displays supported (on-board graphics) | 3 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16+1x4, 1x8+3x4, 2x8+1x4 |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
What people say
Reviews & ratings
HP Intel Xeon E3-1245 v2
No reviews yet
Be the first to tell others how HP Intel Xeon E3-1245 v2 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare HP Intel Xeon E3-1245 v2
All cpu comparisons- HP Intel Xeon E3-1245 v2 vsHP Intel Core i5-3230MCompare specs
- HP Intel Xeon E3-1245 v2 vsHP AMD Opteron 4238Compare specs
- HP Intel Xeon E3-1245 v2 vsHP Intel Core i7-3940XMCompare specs
- HP Intel Xeon E3-1245 v2 vsHP C4M33AV processorCompare specs
- HP Intel Xeon E3-1245 v2 vsFujitsu Intel Xeon E5-2407Compare specs
- HP Intel Xeon E3-1245 v2 vsFujitsu Intel Xeon E5-2420Compare specs
- HP Intel Xeon E3-1245 v2 vsFujitsu Intel Xeon E3-1220Compare specs
- HP Intel Xeon E3-1245 v2 vsNEC Intel Xeon E5-2470Compare specs
Similar products
All cpus
Fujitsu

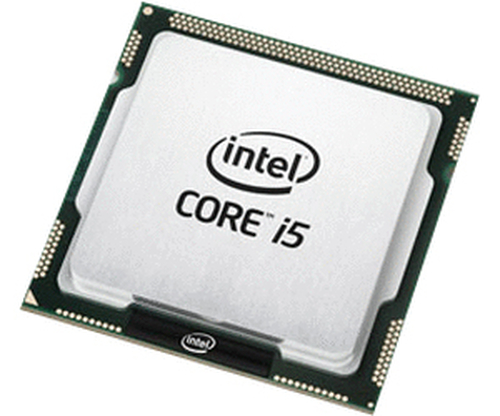

Core i5-7200U processor
