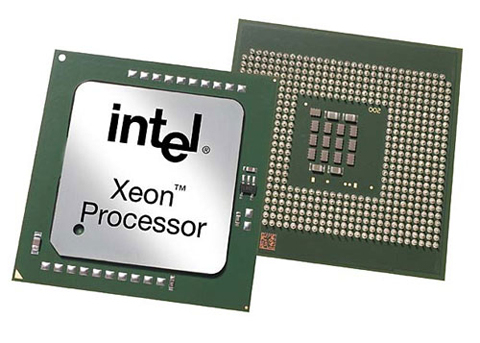

HP Intel Xeon E3-1240
Model Intel Xeon E3-1240Part no. 641914-L21EAN 4054842512791
23 specifications Checked 5 days ago
- ProcessorIntel® Xeon® E3 Family
- Maximum internal memory supported by processor32 GB
- Market segmentServer
- Maximum operating temperature69.1 °C
Overview
- Processor
- Intel® Xeon® E3 Family
- Maximum internal memory supported by processor
- 32 GB
- Market segment
- Server
- Maximum operating temperature
- 69.1 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E3-1240
- Part numbers
- 641914-L21, XU955AV, 638634-001
- EAN / UPC
- 4054842512791
- Also known as
- HP Intel Xeon E3-1240 processor 3.3 GHz 8 MB L3 Tray
Specifications
23 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E3 Family |
| Processor model | E3-1240 |
| Processor base frequency | 3.3 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.7 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| CPU multiplier (bus/core ratio) | 33 |
| Memory bandwidth supported by processor (max) | 32 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 69.1 °C |
