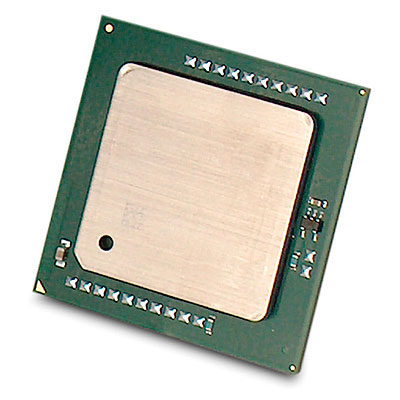

HP Intel Xeon E3-1230 V3
Model Intel Xeon E3-1230 V3Part no. D5G61AV
47 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E3 V3 Family
- Maximum internal memory supported by processor32 GB
- On-board graphics cardNo
- Execute Disable BitYes
Overview
- Processor
- Intel® Xeon® E3 V3 Family
- Maximum internal memory supported by processor
- 32 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E3-1230 V3
- Part numbers
- D5G61AV, 727375-001
- Also known as
- HP Intel Xeon E3-1230 V3 processor 3.3 GHz 8 MB L3
Specifications
47 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E3 V3 Family |
| Processor model | E3-1230V3 |
| Processor base frequency | 3.3 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1150 (Socket H3) |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 5 GT/s |
| Processor operating modes | 32-bit, 64-bit |
| Processor boost frequency | 3.7 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| Bus type | QPI |
| Number of QPI links | 1 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal solution specification | PCG 2013D |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel TSX-NI | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
